Set Basic Position Of Camshafts - AR05.20-P-6020MFG
Engine 139 in model 118, 177, 247
MODIFICATION NOTES
| 04.03.2022 | Work procedure adapted. |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove | |||
| 1 | Remove camshaft positioners. | AR05.20-P-7204MFG | |
| Fig 3 | |||
| Adjust basic position of camshafts (5) | |||

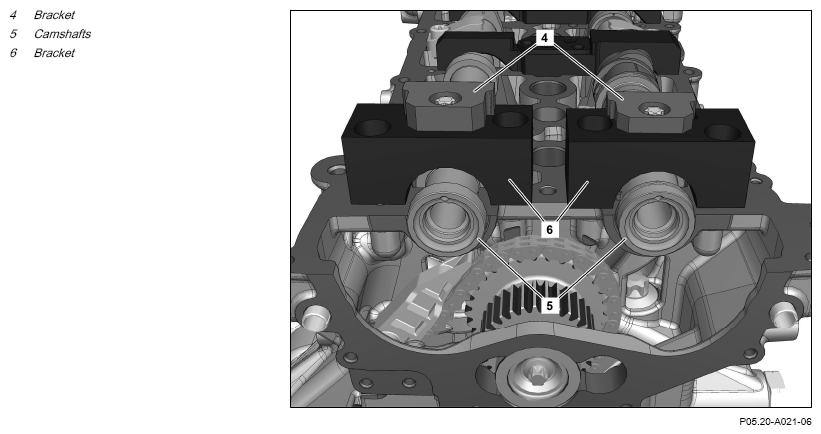

| 2 | Turn camshafts (5) until the brackets (4) can be inserted. | Fig 1 | |
| Fig 2 | |||
| 3 | Install camshaft positioners. | AR05.20-P-7204MFG | |
| Fig 3 | |||
| Check | |||
| 4 | Turn engine at center bolt of crankshaft x 2 in direction of engine rotation to ignition TDC at cylinder 1. | AR01.10-P-1000-01MFG | |
| Fig 3 | |||
| 5 | Check basic position of camshafts (5). | If the basic position of the camshafts (5) is incorrect, ↓ adjust basic position of the camshafts (5) again. |
AR05.20-P-6010MFG |
| Install | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. | ||
| 7 | Install upper engine cover. | ||
| AP01.10-P-2405-01K |
