Check Basic Position Of Camshafts - AR05.20-P-6010MFG

Engine 139 in model 118, 177, 247

G16166917

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove
1	Remove exhaust camshaft Hall sensor (B6/16).		AR07.04-P-0057MFG
2	Remove intake camshaft Hall sensor (B6/15).		AR07.04-P-0056MFG
3	Remove right front fender liner.		AR88.10-P-1301MFA
	Check
4	Turn engine to top dead center position.		AR01.10-P-1000-01MFG
		Counterholder	Fig 1

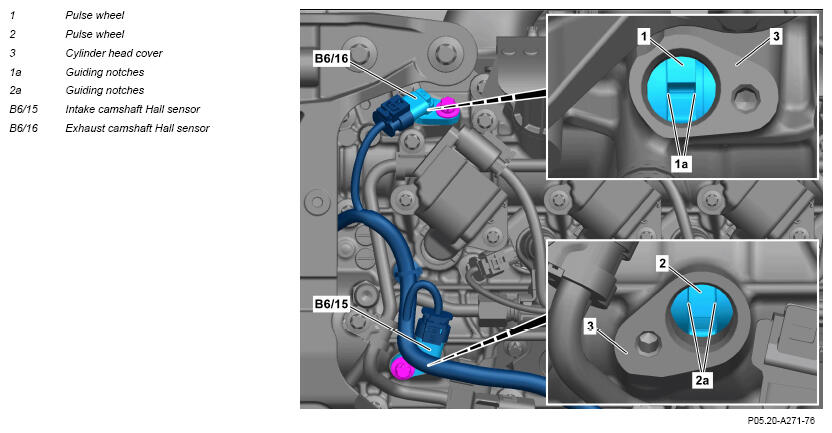

5	Check basic position of camshafts.	The basic position of the camshafts is checked by a visual inspection over the Hall sensor openings on cylinder head cover (3). To check the exhaust camshaft position, the guiding notches (1a) of the pulse wheel (1) must visibly be in the center of the Hall sensor opening. To check the intake camshaft position, the guiding notches (2a) of the pulse wheel (2) must be in the center of the Hall sensor opening. If the basic position of the camshafts is not correct, ↓ Set basic position of the camshafts.	AR05.20-P-6020MFG
	Install
6	Install right front fender liner.		AR88.10-P-1301MFA
7	Install intake camshaft Hall sensor (B6/15).		AR07.04-P-0056MFG
8	Install exhaust camshaft Hall sensor (B6/16).		AR07.04-P-0057MFG

Fig 1: Identifying Counterholder (654 589 00 40 00)

G16166918

Courtesy of MERCEDES-BENZ USA
