Remove/Install Charge Air Distributor - AR09.41-P-8683MFG
Engine 139 in model 118, 177, 247
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove the throttle valve actuator. | AR07.51-P-1404MFG | |
| 2 | Remove low-temperature circuit expansion reservoir. | AR20.30-P-4951MFG | |

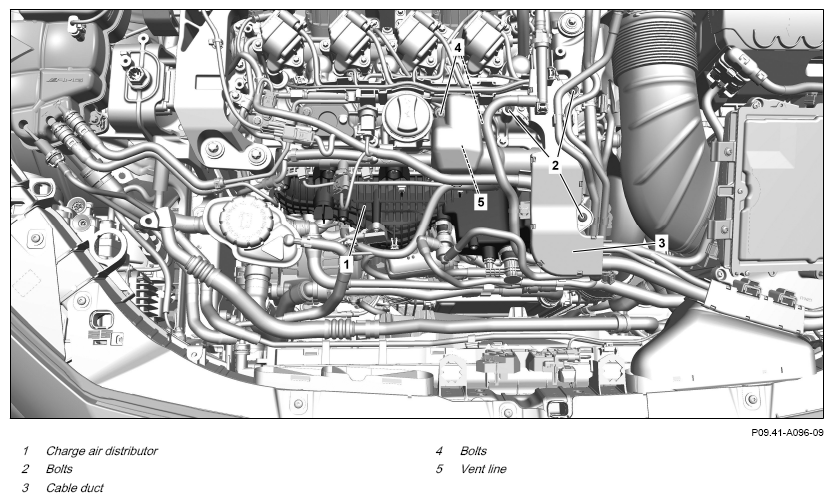

| 3 | Remove screws (2) and release cable duct (3). | Otherwise damage will occur. |
|
| *BA00.10-P-1002-04A | |||

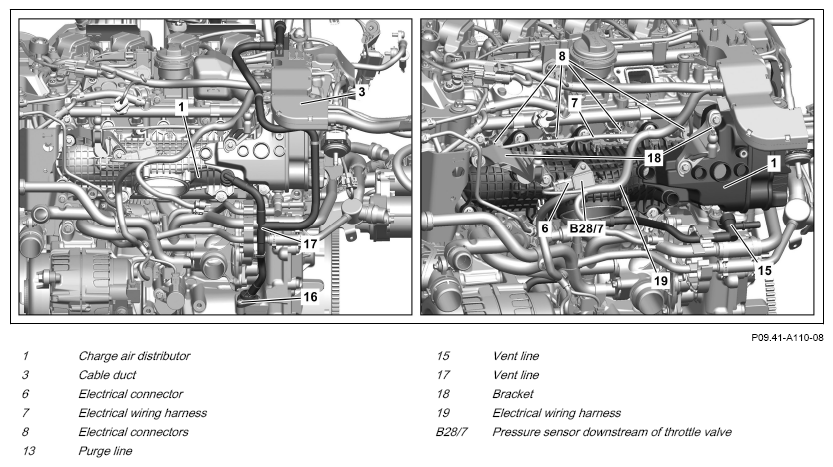

| 4 | Remove electrical wiring harness (19) from charge-air distributor (1). | Otherwise damage will occur. |
|
| 5 | Remove electrical wiring harness (7) from charge-air distributor (1). | Otherwise damage will occur. |
|
| 6 | Release and disconnect electrical connectors (8). | ||
| 7 | Release and disconnect electrical connector (6). | ||
| 8 | Remove screws (4) and remove bleed line (5). | Check seals are correctly seated. Do not coat connections with grease. |
|
| *BA00.10-P-1002-04A | |||

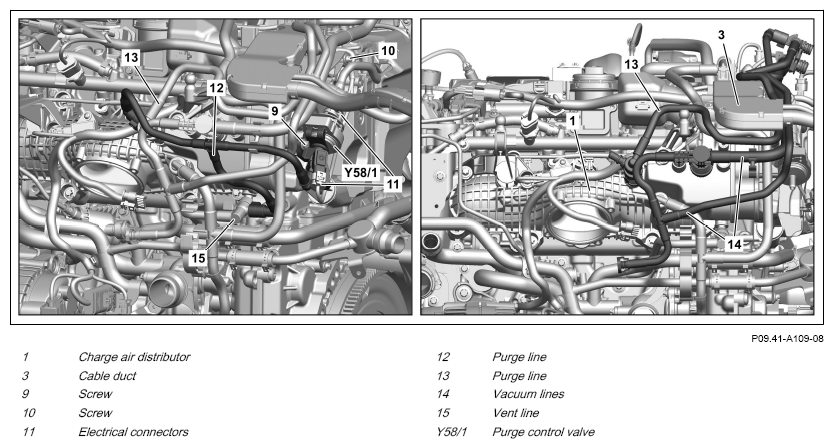

| 9 | Seal opening at charge-air distributor (1) with a suitable stop plug and seal opening on the cylinder head cover with lint-free rag. | Fig 2 | |
| 10 | Release and disconnect electrical connectors (11). | ||
| 11 | Remove screw (9) and release purging switchover valve (Y58/1) from the charge-air distributor (1). | *BA00.10-P-1002-04A | |
| 12 | Remove the bolt (10). | *BA09.41-P-1002-01FA | |
| 13 | Remove purge line (12) and seal openings with suitable stop plugs. | ||
| Fig 2 | |||
| 14 | Remove the purge line (13) and the vacuum line (14) from the charge-air distributor (1) and seal openings with suitable stop plugs. | ||
| Fig 2 | |||
| 15 | Remove purge line (13) and vacuum line (14). | ||
| 16 | Remove bleed line (17) from the charge-air distributor (1), place outside of the working area, and seal openings with suitable stop plugs. | ||
| Fig 2 | |||
| 17 | Release bleed line (15) from the charge-air distributor (1) and seal openings with suitable stop plugs. | Fig 2 | |
| 18 | Remove screws of charge-air distributor (1) in reverse order of tightening procedure. | Loosen/tighten screws/bolts of charge-air distributor |
AR09.41-P-0000-01MFG |
| *BA09.41-P-1002-01FA | |||
| 19 | Remove charge-air distributor (1) and seal openings with clean rags. | Otherwise leaks and damage can occur. |
|
| 20 | Remove brackets (18). | Only when replacing the charge air distributor (1). | |
| 21 | Remove pressure sensor downstream of the throttle valve (B28/7). | Only when replacing the charge air distributor (1). | |
| 22 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 23 | Carry out engine test run and check engine for proper leak tightness and leak tightness. | ||
| 24 | Install upper engine cover. | ||
| AP01.10-P-2405-01K |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6x1 | Nm | 9 | 13 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 139 | |
|---|---|---|---|
| BA09.41-P-1002-01FA | Screw, charge air distributor to cylinder head/cylinder head cover | Nm | 11 |
