Remove/Install Low-Temperature Circuit Coolant Expansion Reservoir - AR20.30-P-4951MFG

Engine 139 in model 118, 177, 247

MODIFICATION NOTES

26.11.2019

Document completely revised.

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Notes on coolant level		AH20.00-P-1142-01CW
	Remove/install

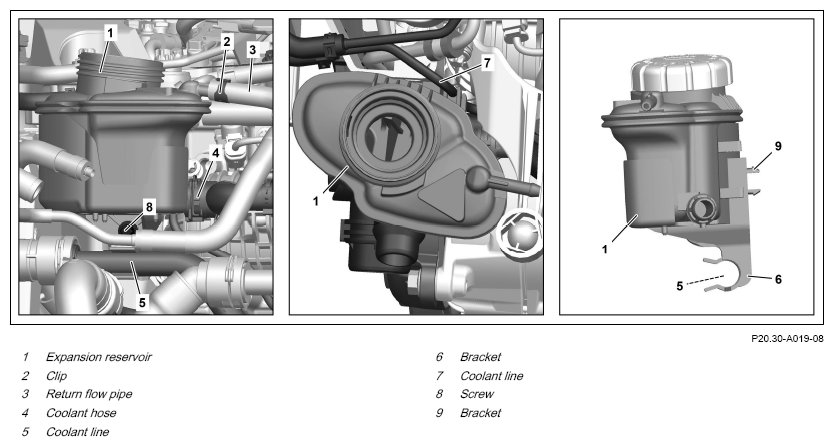

1	Remove upper engine cover.
		: Do not install upper engine cover until after the leak test.	AP01.10-P-2405-01K
2	Remove cap of expansion reservoir (1).
3	Extract coolant from expansion reservoir (1).	Hand pump	Fig 1
4	Open clamp (2), remove return line (3) from the expansion reservoir (1), and seal openings with suitable stop plugs.	Commercially available devices/tools  Hose clamp pliers. Record plug	Fig 3
5	Remove coolant hose (4) from expansion reservoir (1) and seal openings with protective covers.		AR20.20-P-7441-01RQ
		Set of protective covers	Fig 2
6	Remove coolant line (5) from the bracket (6).
7	Remove coolant line (7) from the expansion reservoir (1).
8	Remove screw (8).	Screw, charge air cooling expansion reservoir to holder	*BA09.41-P-1010-01FA
9	Unclip bracket (9) and remove expansion reservoir (1).
10	Install in the reverse order.
11	Correct coolant level.
	Coolant specifications		BB00.40-P-0310-01A
		Coolant mixing ratio	*BF20.00-P-1001-04A
	Check
12	Check engine cooling system for leak tightness.		AR20.00-P-1010MFG
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
13	Carry out engine test run and check engine for proper operation and leak tightness.
14	Install upper engine cover.
			AP01.10-P-2405-01K

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 139.9
BA09.41-P-1010-01FA	Screw, charge air cooling expansion reservoir to holder	Nm	8

COOLANT MIXING RATIO

Number	Designation				All engines, except engine 178 in model 190.381
BF20.00-P-1001-04A	Coolant mixing ratio	Antifreeze/water	Up to -25°C	%	-
			Up to -37°C	%	50/50
			As of -38°C	%	55/45
			Overview and specifications		BB00.40-P-0310-01A
			References to specifications		BB00.40-P-0310ZZ
