Remove/Install Throttle Valve Actuator - AR07.51-P-1404MFG
Engine 139 in model 118, 177, 247
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove charge air cooler. | AR09.41-P-0105MFG | |

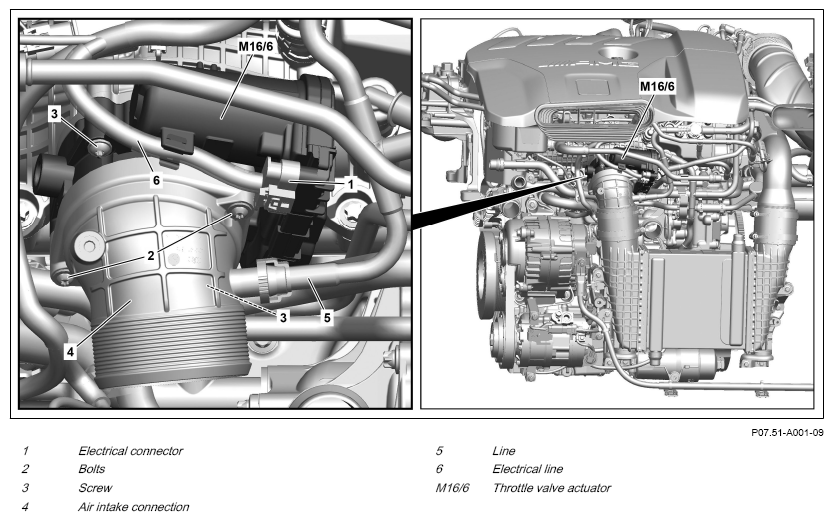

| 2 | Unclip electric line (6) from the throttle valve actuator (M16/6). | ||
| 3 | Release and disconnect electrical connector (1) from throttle valve actuator (M16/6). | ||
| 4 | Release and disconnect line (5) from the air intake connection (4). | ||
| 5 | Remove screws (2) and remove air intake connection (4). | *BA30.20-P-1002-01C | |
| 6 | Remove screws (3) and remove throttle valve actuator (M16/6). | ||
| *BA30.20-P-1002-01C | |||
| 7 | Install in the reverse order. | ||
| Check | |||
| 8 | Connect diagnostic system, read out fault memory, and clear. | ||
| AD00.00-P-2000-06MFA | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Conduct engine test run while checking for proper operation of the engine. |
ELECTRONIC ACCELERATOR ACTUATOR
| Number | Designation | Engine 139 | |
|---|---|---|---|
| BA30.20-P-1002-01C | Bolt, throttle valve actuator to charge air distributor | Nm | 6 |
