Remove/Install Propeller Shaft - AR41.10-P-0050MSA

Model 257 with engine 256, 264

Shown on model 257 with engine 256

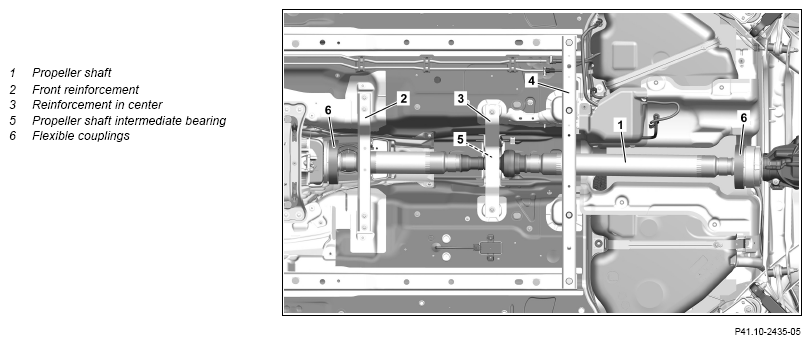

Fig 1: Propeller Shaft Component Location - Model 257 With Engine 256

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install
1	Secure vehicle to prevent it moving away.
2	Put transmission into neutral position.
3	Release parking brake.
4	Remove exhaust system.	Model 257 with engine 264	AR49.10-P-7142MRH
		Model 257 with engine 256	AR49.10-P-7142MSA
5	Remove differential pressure sensor.	Model 257 with engine 264 with code 598 (Gasoline particulate filter (OPF) with sensor system)
			AR07.04-P-0025MRH
6	Remove all heat shields under propeller shaft (1).
7	Remove front reinforcement (2).	Bolt, reinforcement under seat to frame floor assembly	*BA61.10-P-1005-01L
8	Remove center reinforcement (3).	Bolt, center reinforcement to frame floor assembly	*BA61.10-P-1003-01L
9	Mark propeller shaft (1).	In order to be able to reproduce the factory installation position when installing, apply a color marking identifying the position of the propeller shaft (1) relative to the flanges on the transmission and rear-axle differential.
10	Mark propeller shaft intermediate bearing (5).	In order to be able to reproduce the factory installation position when installing, make colored markings of the position of the propeller shaft intermediate bearing (5) relative to the frame floor assembly. Observe marking.
11	Loosen screws on propeller shaft intermediate bearing (5).	Tighten screws securely only after the propeller shaft (1) has been securely fitted to the transmission and rear axle differential.
		Bolt, propeller shaft intermediate bearing to frame floor assembly	*BA41.40-P-1001-01H
12	Remove flex disks (6) from transmission and rear axle differential.		AR41.10-P-0040-01MSA
	Drift for releasing the fitting sleeves in the flexible couplings		WF58.50-P-4110-01A
		Helper required. The flex disks (6) remain on the propeller shaft (1).
		Flexible coupling to transmission/rear axle differential or propeller shaft	*BA41.10-P-1001-01M
		Counterholder	Fig 2
13	Remove screws from propeller shaft intermediate bearing (5) and guide out propeller shaft (1) towards the rear.	Screw in screws loosely and tighten only after the flex disks (6) have been tightened at the transmission and rear axle differential. Vibrations in the drive train and damage may otherwise occur. Make sure that the propeller shaft halves do not come apart at the slide joints. Otherwise damage will occur.
	Check
14	Check propeller shaft intermediate bearing (5) for wear and damage.	If problems exist, ↓ replace propeller shaft intermediate bearing (5).
			AR41.10-P-0100MSA
15	Check pilot bushings for wear and damage.	If problems exist, ↓ Replace pilot bushings.
			AR41.10-P-0250MSA
16	Check flex disks (6) for wear and damage.
			AP41.10-P-4152EW
		If problems exist, ↓ replace respective flex disk (6).
17	Install in the reverse order.

Fig 2: Identifying Counterholder (176 589 00 40 00)

Courtesy of MERCEDES-BENZ USA
