Remove/Install Propeller Shaft Intermediate Bearing And Replace Grooved Ball Bearing - AR41.10-P-0100MSA
Model 257 with engine 256, 264
Model 290 with engine 256
| Remove | |||
| 1 | Remove propeller shaft. | Model 290 with engine 256 | AR41.10-P-0050MNI |
| Model 257 with engine 256, 264 | AR41.10-P-0050MSA | ||

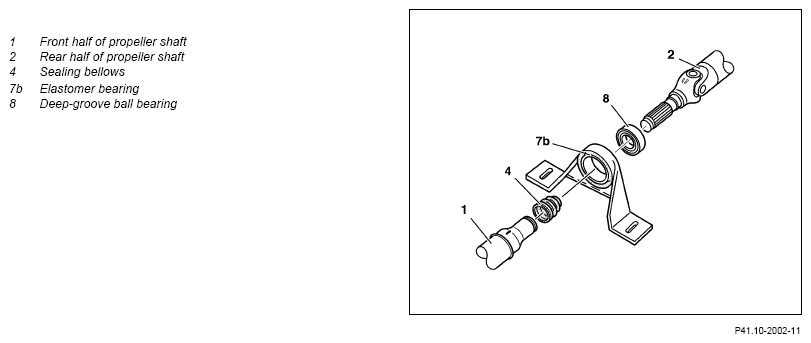

| 2 | Mark front half of propeller shaft (1) relative to rear half of propeller shaft (2). | ||
| 3 | Disconnect front half of propeller shaft (1) and rear half of propeller shaft (2) at sliding piece connection. | ||
| 4 | Detach seal bellows (4) from front half of propeller shaft (1). | ||
| 5 | Detach elastomer bearing (7b) together with deep-groove ball bearing (8) from rear half of propeller shaft (2). | AR41.10-P-0100-07MSA | |
| Fig 2 | |||
| Fig 1 | |||
| 6 | Press deep-groove ball bearing (8) out of elastomer bearing (7b). | AR41.10-P-0100-03MSA | |
| Fig 4 | |||
| Install | |||
| 7 | Press deep-groove ball bearing (8) into elastomer bearing (7b). | AR41.10-P-0100-03MSA | |
| Fig 4 | |||
| 8 | Press elastomer bearing (7b) together with deep-groove ball bearing (8) onto joint fork of rear half of propeller shaft (2). | AR41.10-P-0100-05MSA | |
| Fig 3 | |||
| 9 | Check seal bellows (4) for damage and leak tightness. | If a complaint has been submitted ↓ Install new seal bellows (4). |
|
| 10 | Fit seal bellows (4) onto front half of propeller shaft (1). | ||
| 11 | Press front half of propeller shaft (1) and rear half of propeller shaft (2) together. | AR41.10-P-0050-05MSA | |
| Long-life grease | *BR00.45-Z-1001-06A | ||
| 12 | Install propeller shaft. | Model 290 with engine 256 | AR41.10-P-0050MNI |
| Model 257 with engine 256, 264 | AR41.10-P-0050MSA |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-06A | Long-life grease | A 000 989 63 51 11 |
