Remove/Install Rear Side Airbag Unit - AR91.60-P-0694MEX
Model 167.9
with code 293 (Sidebag in rear left and right)
except code M036 (Maybach version)
Shown on left rear seat

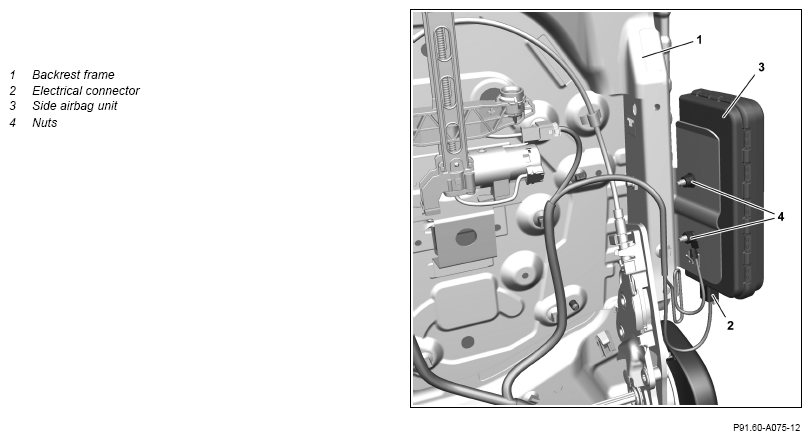

Fig 1: Rear Side Airbag Unit Components Location - Model 167.9 With Code 293 Except Code M036 (Shown On Left Rear Seat)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove seat backrest cover together with seat backrest padding from seat backrest frame (1). | Model 167.9 with code 226 (7-seater with 3rd seat row) with code 293 (Sidebag in rear left and right) except code 224 (Individual rear seats) except code M036 (Maybach version) |
AR91.18-P-1872MEB |
| Model 167.9 with code 224 (Individual rear seats) with code 293 (Sidebag in rear left and right) except code M036 (Maybach version) |
AR91.18-P-1872MEX | ||
| 2 | Release and disconnect electrical connector (2) at sidebag unit (3). | Fig 2 | |
| 3 | Remove nuts (4). | *BA91.60-P-1009-01R | |
| 4 | Remove ground line from lower stud bolt. | ||
| 5 | Remove sidebag unit (3) from seat backrest frame (1). | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06ME |
AIRBAG
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.60-P-1009-01R | Nut, sidebag unit to backrest frame | Nm | 7 |
