Remove/Install Cover On Rear Seat Backrest - AR91.18-P-1872MEB

Model 167.1

with code 567 (Vario rear seat)

Model 167.9

with code 226 (7-seater with 3rd seat row)

except code 224 (Individual rear seats)

except code M036 (Maybach version)

Courtesy of MERCEDES-BENZ USA

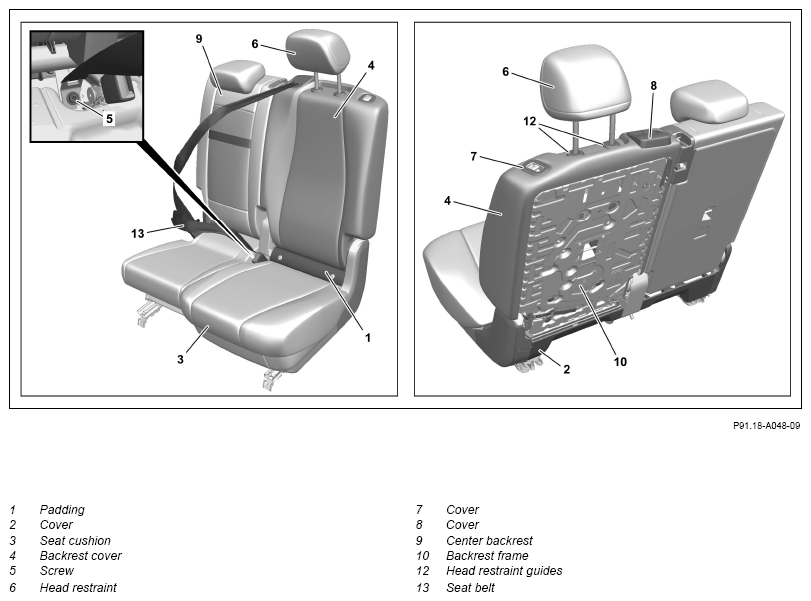

Shown on left rear seat with code 567 (Vario rear bench seat) and with code 847 (3rd seat row)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove rear seat.		AR91.12-P-4026ME
2	Remove padding (1).
3	Remove cover (2).	Model 167.1 with code 567 (Vario rear seat) with code 847 (3rd seat row) Model 167.9 with code 226 (7-seater with 3rd seat row) except code 224 (Individual rear seats) except code M036 (Maybach version) Long wedge	Fig 1
4	Remove left seat cushion (3).	When removing left seat backrest cover (4).	AR91.18-P-1851MEA
5	Unscrew screw (5) and remove seat belt end fitting from seat frame base.	When removing left seat backrest cover (4). Bolt/nut for rear belt end fitting	*BA91.40-P-1005-01U
6	Remove seat backrest trim.		AR91.12-P-1134ME
7	Remove head restraint (6).		AR91.16-P-1770ME
8	Remove cover (7).	Long wedge	Fig 1
9	Remove cover (8) from seat belt outlet and fold center seat backrest (9) forward.	When removing left seat backrest cover (4).
10	Unhook seat backrest cover (4) from seat backrest frame (10).	Dismantling tool	Fig 2
11	Disconnect electrical connectors from seat backrest.	Model 167.1 with code 567 (Vario rear seat) with code 872 (Left and right rear seat heating) Model 167.9 with code 226 (7-seater with 3rd seat row) with code 402 (Rear seat climate control) except code 224 (Individual rear seats) except code M036 (Maybach version) Model 167.9 with code 226 (7-seater with 3rd seat row) with code 872 (Left and right rear seat heating) except code 224 (Individual rear seats) except code M036 (Maybach version) The number of electrical connectors varies according to vehicle equipment.
12	Release seat backrest cover (4) together with seat backrest padding (11) from seat backrest frame (10).
13	Release head restraint guides (12) in seat backrest and remove upward.	To do so, grip between seat backrest frame (10) and seat backrest padding (11). Replace head restraint guides (12) and check for correct installation position.
14	Guide seat belt (13) through cutout in seat backrest cover (4) and in seat backrest padding (11).	When removing left seat backrest cover (4).
15	Remove seat backrest cover (4) together with seat backrest padding (11).

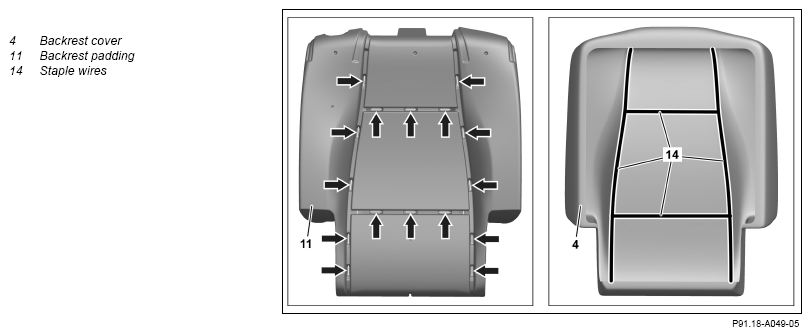

16	Release seat backrest cover (4) from seat backrest padding (11) until staple clips are accessible.
17	Separate staple clips from attachment points (arrows).	Remove creases and smooth out seat backrest cover (4). Padding clip pliers	Fig 3
18	Remove remaining pieces of staple clips.	Carefully remove remaining pieces of staple clips. Otherwise, the seat backrest cover (4) and seat backrest padding (11) will be damaged.
19	Remove seat backrest cover (4) from seat backrest padding (11).	Align seat backrest cover (4) over seat backrest padding (11) so that seams lie in cutouts of seat backrest padding (11).
20	Remove staple wires (14) from seat backrest cover (4).	When replacing the seat backrest cover (4). Insert staple wires (14) into new seat backrest cover (4). Ensure that staple wires (14) are seated correctly.
21	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Dismantling Tool (205 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Padding Clip Pliers (454 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
