Remove/Install Cover On Rear Seat Backrest - AR91.18-P-1872MEX
Model 167.9
with code 224 (Individual rear seats)
except code M036 (Maybach version)

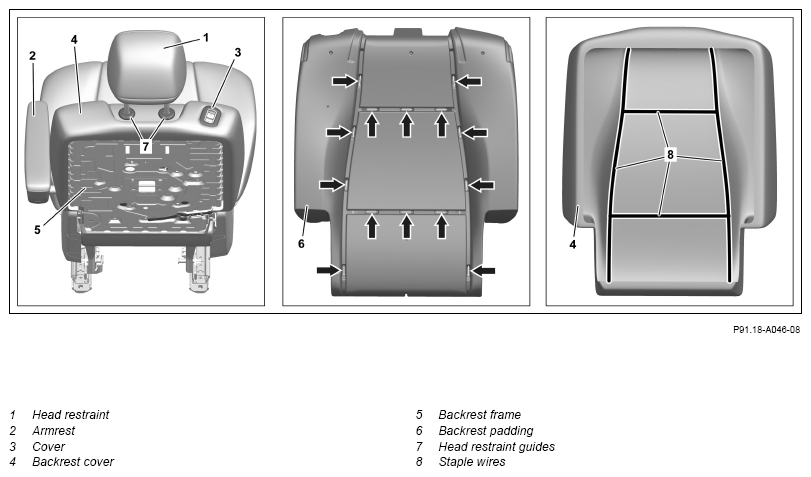

Shown on right rear seat
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove rear seat. | AR91.12-P-4026ME | |
| 2 | Remove head restraint (1). | AR91.16-P-1770ME | |
| 3 | Remove armrest (2) from seat backrest. | AR91.12-P-1749MEX | |
| 4 | Unclip cover (3). | Fig 1 | |
| 5 | Unhook seat backrest cover (4) from seat backrest frame (5). | Fig 2 | |
| 6 | Release seat backrest cover (4) together with seat backrest padding (6) in lower area of seat backrest frame (5). | ||
| 7 | Release head restraint guides (7) in seat backrest and remove upwards. | ||
| 8 | Disconnect electrical connector of seat backrest heat mat. | Model 167.9 with code 224 (Individual rear seats) with code 872 (Left and right rear seat heating) except code M036 (Maybach version) |
|
| 9 | Remove seat backrest cover (4) together with seat backrest padding (6). | ||
| 10 | Release seat backrest cover (4) far enough from seat backrest padding (6) until the staple clips are accessible. | ||
| 11 | Separate staple clips at attachment points (arrows) and remove remaining pieces from seat backrest padding (6). | Carefully remove the remaining pieces of staple clips. Otherwise, the seat backrest padding (6) and the seat backrest cover (4) will be damaged. |
Fig 3 |
| 12 | Remove seat backrest cover (4) from seat backrest padding (6). | ||
| 13 | Remove staple wires (8) from seat backrest cover (4). | When replacing the seat backrest cover (4). Ensure that the staple wires (8) are seated correctly. |
|
| 14 | Install in the reverse order. |
