Remove/Install Engine Covers - AP01.10-P-2405-01M

Engine 176 In Model 167

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

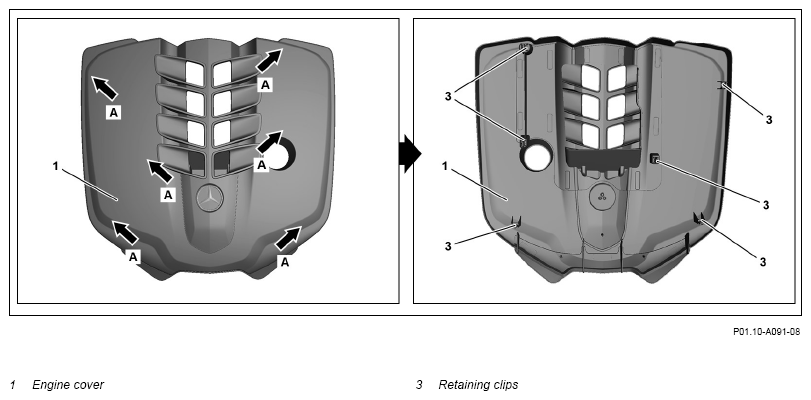

When removing and installing the engine cover (1) always make sure that only the positions shown in the picture (arrows A) are used for pulling during removal or for pressing during installation. The retaining clips (3) latch in the brackets (2) there. No force may be applied at any other points on the engine cover.

The engine cover can get damaged if these instructions are not observed.
