Overview Of System Components For Adaptive Damping System (ADS) - GF32.32-P-9997FR
Model 257, 290 up to model year 2021 with code 459 (Steel suspension with adjustable damping)

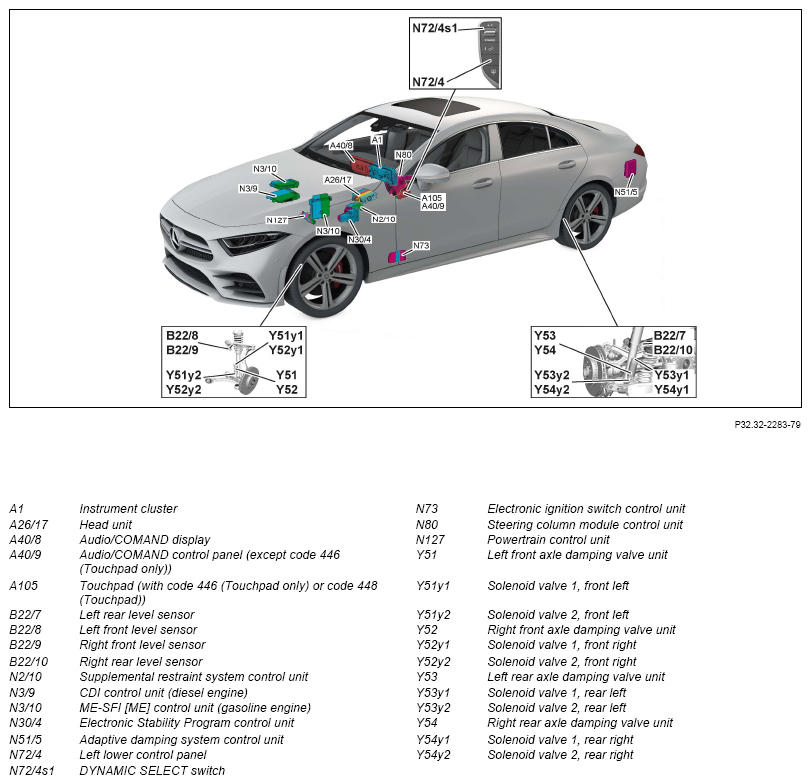

Shown on model 257
Model 290
up to model year 2021
with code 459 (Steel suspension with adjustable damping)

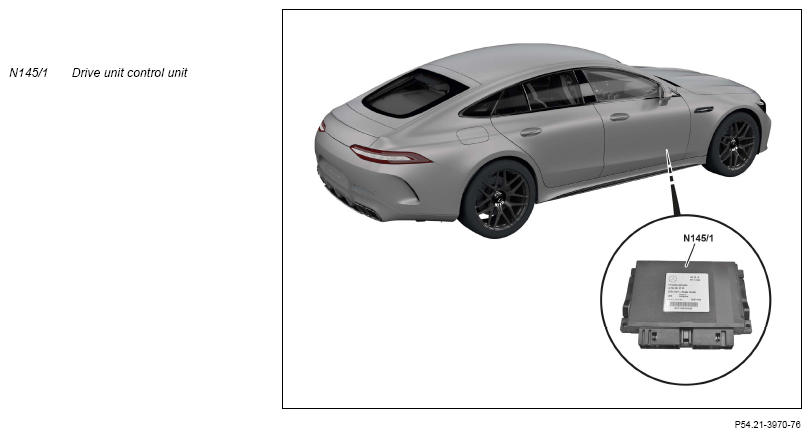

The Drive Unit control unit (N145/1) is also installed in the front right footwell.
Shown on model 290
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Head unit, component description | Model 257, 290 up to model year 2021 with code 459 (Steel suspension with adjustable damping) with code 506 (Audio 20 NTG 5.5 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FRA | |
| Model 257, 290 up to model year 2021 with code 459 (Steel suspension with adjustable damping) with code 531 (COMAND APS) A26/17 | GF82.85-P-3140FRB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150FR | |
| Component description for Audio/COMAND control panel | Model 257, 290 up to model year 2021 with code 459 (Steel suspension with adjustable damping) except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FR | |
| Touchpad, component description | Model 257, 290 up to model year 2021 with code 446 (Touchpad only) with code 459 (Steel suspension with adjustable damping) Model 257 up to model year 2021 with code 448 (Touchpad) with code 459 (Steel suspension with adjustable damping) A105 |
GF54.21-P-4511FR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FR | |
| Component description for CDI control unit | Model 257 with engine 654.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/9 | GF07.16-P-6000ORD | |
| Model 257 with engine 656.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 290 with engine 177.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/10 | GF07.61-P-6000MNL | |
| Model 257 with engine 264.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/10 | GF07.61-P-6000MRG | ||
| Model 257, 290 with engine 256.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/10 | GF07.61-P-6000MRT | ||
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FR | |
| Component description for adaptive damping system control unit | N51/5 | GF32.32-P-1010FR | |
| Lower control panel, component description | Model 257, 290 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N724, N724s1 | GF54.25-P-4270FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FR | |
| Drivetrain control unit, component description | Model 257 with engine 654.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N127 | GF54.21-P-2141ORD | |
| Model 257 with engine 656.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N127 | GF54.21-P-2141OIA | ||
| Model 257, 290 with engine 256.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) Model 290 with engine 177.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N127 |
GF54.21-P-2141LF | ||
| Model 257 with engine 264.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N127 | GF54.21-P-2141MRP | ||
| Drive unit control unit component description | Model 290 with transmission 725.0 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N145/1 | GF27.60-P-5168FR | |
| Table of contents for function description of adaptive damping system (ADS) | GF32.32-P-0998FR |
