Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997FR
Model 257, 290 up to model year 2021 with code 218 (Rear view camera)
Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist)
Model 257, 290 up to model year 2021 with code P44 (Parking package)

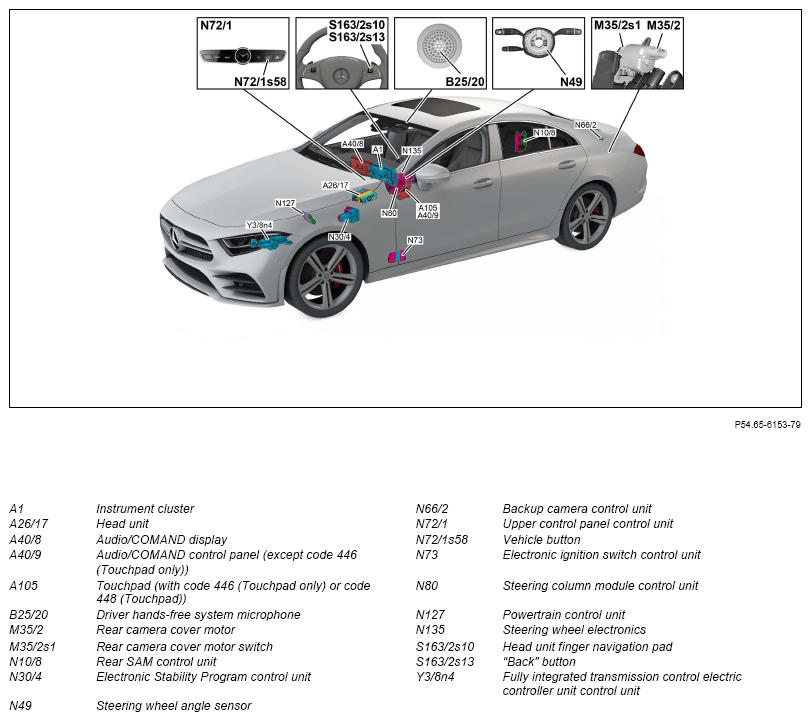

Reversing camera (with code 218 (Reversing camera)); shown on model 257

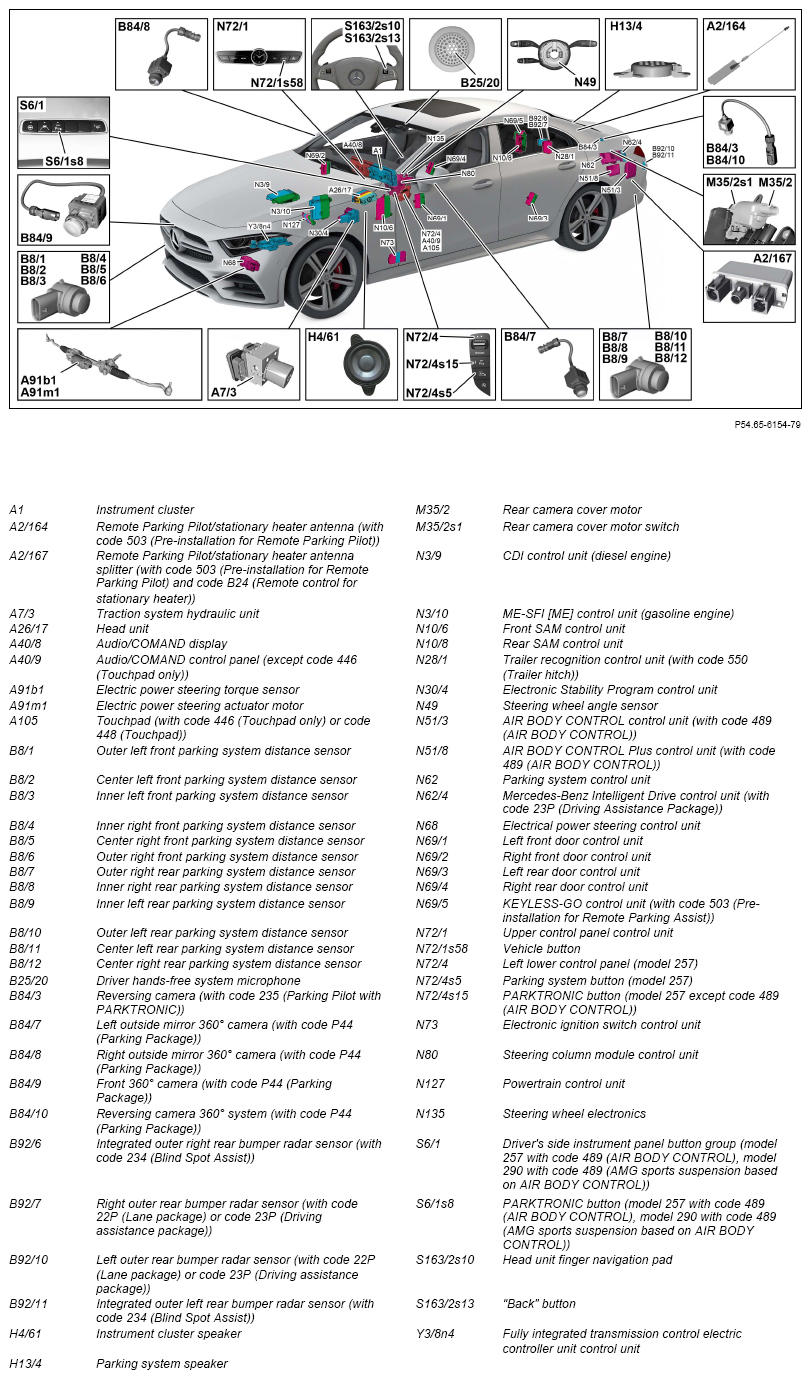

Parking system (with code 235 (Parking Pilot with PARKTRONIC) or with code P44 (Parking Package)), shown on model 257
Model 290 up to model year 2021 with code 235 (Active Parking Assist)
Model 290 up to model year 2021 with code P44 (Parking package)
The left lower control panel is no longer required, the upper control panel control unit is then equipped additionally with the parking system button (N72/1s8).

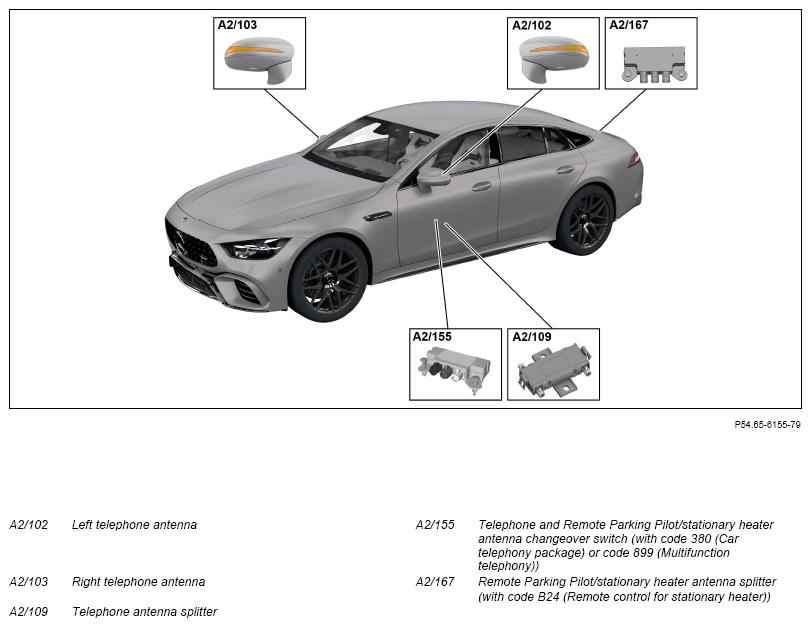

Antenna system, model 290 (with code 235 (Parking Pilot with PARKTRONIC) or with code P44 (Parking Package) and with code 503 (Preinstallation for Remote Parking Pilot)), shown on model 290
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Head unit, component description | Model 257, 290 up to model year 2021 with code 218 (Rear view camera) with code 506 (Audio 20 NTG 5.5 radio) except code 531 (COMAND APS) Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist) with code 506 (Audio 20 NTG 5.5 radio) except code 531 (COMAND APS) Model 257, 290 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) with code P44 (Parking package) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRA | |
| Model 257, 290 up to model year 2021 with code 218 (Rear view camera) with code 531 (COMAND APS) Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist) with code 531 (COMAND APS) Model 257, 290 up to model year 2021 with code 531 (COMAND APS) with code P44 (Parking package) A26/17V |
GF82.85-P-3140FRB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150FR | |
| Component description for Audio/COMAND control panel | Model 257, 290 up to model year 2021 with code 218 (Rear view camera) except code 446 (Touchpad only) Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist) except code 446 (Touchpad only) Model 257, 290 up to model year 2021 with code P44 (Parking package) except code 446 (Touchpad only) A40/9 |
GF54.21-P-4501FR | |
| Touchpad, component description | Model 257, 290 up to model year 2021 with code 218 (Rear view camera) with code 446 (Touchpad only) Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist) with code 446 (Touchpad only) Model 257, 290 up to model year 2021 with code 446 (Touchpad only) with code P44 (Parking package) Model 257 up to model year 2021 with code 218 (Rear view camera) with code 448 (Touchpad) Model 257 up to model year 2021 with code 235 (Active Parking Assist) with code 448 (Touchpad) Model 257 up to model year 2021 with code 448 (Touchpad) with code P44 (Parking package) A105 |
GF54.21-P-4511FR | |
| Component description for bumper radar sensors | Model 257, 290 up to model year 2021 with code 234 (Blind Spot Assist) with code 235 (Active Parking Assist) Model 257, 290 up to model year 2021 with code 234 (Blind Spot Assist) with code P44 (Parking package) Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist) with code 23P (Drive package) Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist) with code P20 (Driving assistant package Plus) Model 257, 290 up to model year 2021 with code 23P (Drive package) with code P44 (Parking package) Model 257, 290 up to model year 2021 with code P20 (Driving assistant package Plus) with code P44 (Parking package) B92/6, B92/7, B92/10, B92/11 |
GF30.30-P-3302FR | |
| Component description for CDI control unit | Model 257 with engine 654.9 up to model year 2021 with code 218 (Rear view camera) Model 257 with engine 654.9 up to model year 2021 with code 235 (Active Parking Assist) Model 257 with engine 654.9 up to model year 2021 with code P44 (Parking package) N3/9 |
GF07.16-P-6000ORD | |
| Model 257 with engine 656.9 up to model year 2021 with code 218 (Rear view camera) Model 257 with engine 656.9 up to model year 2021 with code 235 (Active Parking Assist) Model 257 with engine 656.9 up to model year 2021 with code P44 (Parking package) N3/9 |
GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 290 with engine 177.9 up to model year 2021 with code 218 (Rear view camera) Model 290 with engine 177.9 up to model year 2021 with code 235 (Active Parking Assist) Model 290 with engine 177.9 up to model year 2021 with code P44 (Parking package) N3/10 |
GF07.61-P-6000MNL | |
| Model 257 with engine 264.9 up to model year 2021 with code 218 (Rear view camera) Model 257 with engine 264.9 up to model year 2021 with code 235 (Active Parking Assist) Model 257 with engine 264.9 up to model year 2021 with code P44 (Parking package) N3/10 |
GF07.61-P-6000MRG | ||
| Model 257, 290 with engine 256.9 up to model year 2021 with code 218 (Rear view camera) Model 257, 290 with engine 256.9 up to model year 2021 with code 235 (Active Parking Assist) Model 257, 290 with engine 256.9 up to model year 2021 with code P44 (Parking package) N3/10 |
GF07.61-P-6000MRT | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FR | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FR | |
| Component description for trailer recognition control unit | Model 257, 290 up to model year 2021 with code 218 (Rear view camera) with code 550 (Trailer coupling) Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist) with code 550 (Trailer coupling) Model 257, 290 up to model year 2021 with code 550 (Trailer coupling) with code P44 (Parking package) N28/1 |
GF31.19-P-4050FR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FR | |
| AIR BODY CONTROL control unit, component description | Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist) with code 489 (AIR BODY CONTROL) Model 257, 290 up to model year 2021 with code 489 (AIR BODY CONTROL) with code P44 (Parking package) N51/3, N51/8 |
GF32.22-P-5111FR | |
| Parking system control unit, component description | Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist) Model 257, 290 up to model year 2021 with code P44 (Parking package) N62 |
GF54.65-P-5004FR | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 257, 290 up to model year 2021 with code 218 (Rear view camera) with code 23P (Drive package) Model 257, 290 up to model year 2021 with code 218 (Rear view camera) with code P20 (Driving assistant package Plus) Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist) with code 23P (Drive package) Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist) with code P20 (Driving assistant package Plus) Model 257, 290 up to model year 2021 with code 23P (Drive package) with code P44 (Parking package) Model 257, 290 up to model year 2021 with code P20 (Driving assistant package Plus) with code P44 (Parking package) N62/4 |
GF30.30-P-3312FR | |
| Component description for reversing camera control unit | Model 257, 290 up to model year 2021 with code 218 (Rear view camera) except code 235 (Active Parking Assist) N66/2 | GF54.65-P-5030FR | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010FR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FR | |
| Component description for rear door control unit | N693, N694 | GF72.29-P-6021FR | |
| Component description for KEYLESS-GO control unit | N69/5 | GF80.61-P-4204FR | |
| Upper control panel control unit, component description | N72/1, N72/1s8, N72/1s58 | GF54.21-P-6040FR | |
| Lower control panel, component description | Model 257 up to model year 2021 with code 235 (Active Parking Assist) Model 257 up to model year 2021 with code P44 (Parking package) N72/4, N72/4s5, N72/4s15 |
GF54.25-P-4270FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FR | |
| Drivetrain control unit, component description | Model 257 with engine 654.9 up to model year 2021 with code 218 (Rear view camera) Model 257 with engine 654.9 up to model year 2021 with code 235 (Active Parking Assist) Model 257 with engine 654.9 up to model year 2021 with code P44 (Parking package) N127 |
GF54.21-P-2141ORD | |
| Model 257, 290 with engine 256.9 up to model year 2021 with code 218 (Rear view camera) Model 257, 290 with engine 256.9 up to model year 2021 with code 235 (Active Parking Assist) Model 257, 290 with engine 256.9 up to model year 2021 with code P44 (Parking package) Model 290 with engine 177.9 up to model year 2021 with code 218 (Rear view camera) Model 290 with engine 177.9 up to model year 2021 with code 235 (Active Parking Assist) Model 290 with engine 177.9 up to model year 2021 with code P44 (Parking package) N127 |
GF54.21-P-2141LF | ||
| Model 257 with engine 264.9 up to model year 2021 with code 218 (Rear view camera) Model 257 with engine 264.9 up to model year 2021 with code 235 (Active Parking Assist) Model 257 with engine 264.9 up to model year 2021 with code P44 (Parking package) N127 |
GF54.21-P-2141MRP | ||
| Model 257 with engine 656.9 up to model year 2021 with code 218 (Rear view camera) Model 257 with engine 656.9 up to model year 2021 with code 235 (Active Parking Assist) Model 257 with engine 656.9 up to model year 2021 with code P44 (Parking package) N127 |
GF54.21-P-2141OIA | ||
| Steering wheel electronics control unit, component description | N135 | GF82.90-P-4006FR | |
| Steering wheel electronics control unit, component description | N135 | GF82.90-P-4006FR | |
| Fully integrated transmission control electric controller unit control unit, component description | Model 257 with transmission 725.0 up to model year 2021 with code 218 (Rear view camera) Model 257 with transmission 725.0 up to model year 2021 with code 235 (Active Parking Assist) Model 257 with transmission 725.0 up to model year 2021 with code P44 (Parking package) Y38n4 |
GF27.60-P-5120ANR | |
| Model 290 with transmission 725.096 up to model year 2021 with code 218 (Rear view camera) Model 290 with transmission 725.096 up to model year 2021 with code 235 (Active Parking Assist) Model 290 with transmission 725.096 up to model year 2021 with code P44 (Parking package) Y38n4 |
GF27.60-P-5120ANS | ||
| Table of contents for function description of parking assistance systems | GF54.00-P-0997FR |
