Remove/Install Trunk Lid Lock Actuator - AR88.50-P-5090FR

Model 257

Shown with code 501 (360° camera)

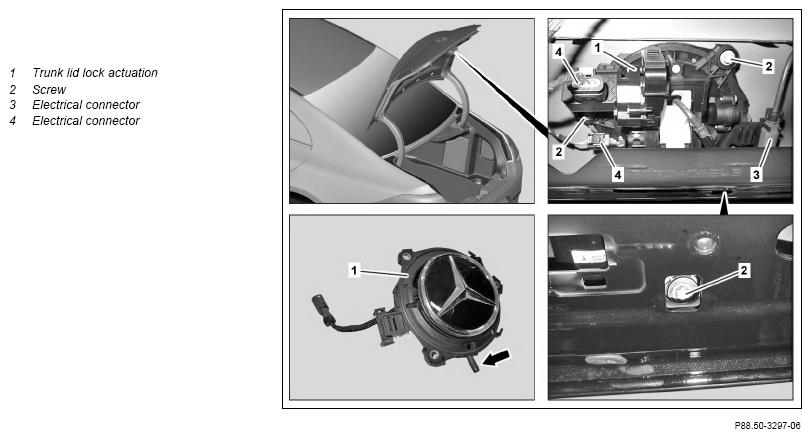

Fig 1: Trunk Lid Lock Actuator Component Location - Model 257 With Code 501

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove trunk lid paneling		AR68.30-P-8151FR
2	Remove trunk lock		AR88.50-P-0003FR
3	Release, disconnect and unclip electrical connector (3)	Model 257 with code 218 (Rear view camera) Model 257 with code 501 (360° camera) Number of electrical connectors (3) can vary depending on the equipment.
4	Disconnect electrical connections (4)
5	Unscrew bolts (2)
6	Remove hose at drainage fitting (arrow) of trunk lid lock actuation (1)
7	Remove trunk lid lock actuation (1)
8	Install in the reverse order
