Remove/Install Trunk Lid Cover - AR68.30-P-8151FR
Model 257
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove warning triangle (3) from warning triangle bracket | ||

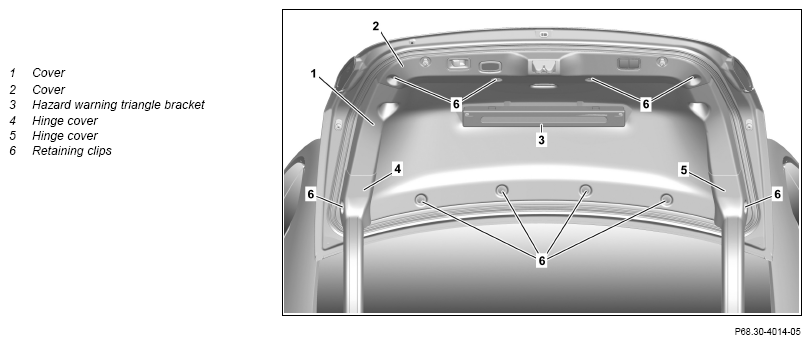

| 2 | Remove rear hazard warning triangle (3) | Fig 1 | |
| 3 | Unclip retaining clips (6) | Fig 1 | |
| 4 | Unclip paneling (2) and disconnect electrical connector | ||
| 5 | Remove trim panel (2) | ||
| 6 | Remove hinge covers (4, 5) | ||
| 7 | Remove trim (1) | ||
| 8 | Install in the reverse order |
