Remove/Install Trunk Lid Lock - AR88.50-P-0003FR

Model 257

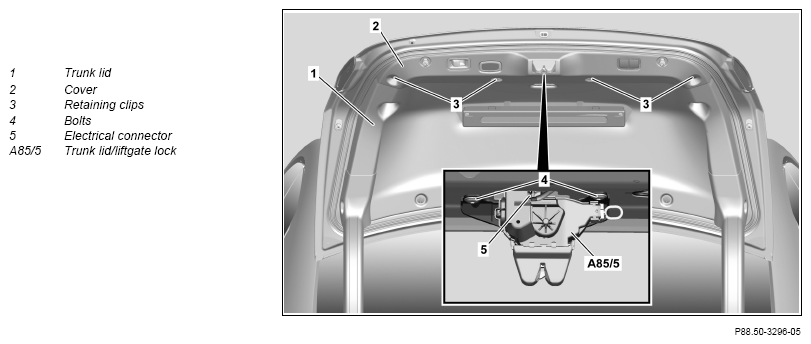

Fig 1: Trunk Lid Lock Component Location - Model 257

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Unclip retaining clips (3)	Clip remover	Fig 2
2	Unclip paneling (2) and disconnect electrical connector	The number of electrical connectors may vary depending on the equipment.
3	Remove trim panel (2)
4	Disconnect electrical connection (5)
5	Mark installation position of trunk lid/tailgate lock (A85/5) at trunk lid (1)
6	Remove bolts (4)	Align trunk lid/tailgate lock (A85/5) according to markings. Bolt, trunk lid lock to trunk lid	*BA88.50-P-1004-03A
7	Remove trunk lid/tailgate lock (A85/5)
8	Install in the reverse order

TRUNK LID

Number	Designation		Model 257
BA88.50-P-1004-03A	Bolt, trunk lid lock to trunk lid	Nm	9

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
