Remove/Install Brake Hose At Rear Axle - Ar42.10-D-0023TS
Model 907
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. Minibus, leichte Transporter |
AS00.00-Z-0017-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on inspecting corrosion on brake lines | Minibus, leichte Transporter | AH42.50-Z-0002-01A | |
| Remove/install | |||
| 1 | Raise vehicle. | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||

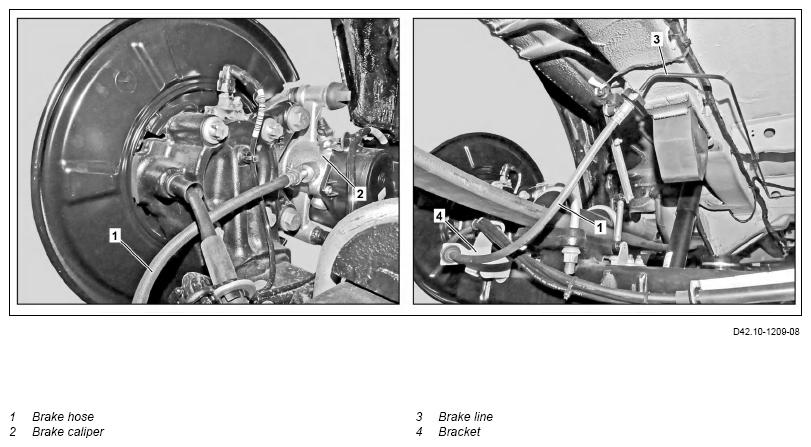

| 2 | Remove brake line (3) from respective brake hose (1). | Do not twist brake hose (1) when installing and make sure that it can move freely. Otherwise, the brake hose (1) may be damaged and the brake system may fail. |
*BA42.10-N-1001-14TS |
| Fig 3 | |||
| Fig 2 | |||
| 3 | Remove brake hose (1) from holder (4). | ||
| 4 | Remove brake hose (1) from brake caliper (2). | ||
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
| *BA42.10-N-1002-14TS | |||
| Fig 1 | |||
| Fig 2 | |||
| 5 | Install in the reverse order | ||
| 6 | Bleed brake system. | AR42.10-D-0010TS |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA42.10-N-1001-14TS | Retaining screw, brake line to brake hose | Nm | 14 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA42.10-N-1002-14TS | Brake hose to brake caliper | Nm | 24 |
