Reception Report For Service At Vehicle - AP00.20-D-0009TSC

Model 907

except code ZJ8 (Configuration Mercedes-Benz Minibus (MBM))

Customer.............................................

VIN/license plate number.............................................

Service code.............................................

Remaining distance.............................................

Oil type/viscosity.............................................

Notes/explanations.............................................

Order number.............................................

Current mileage.............................................

Workshop code.............................................

Remaining time.............................................

Completion time/date.............................................

The following activities are hereby confirmed:

• Performance of all test/check items in the reception report
• Correctness of defined service scope
• Update of Digital Service Booklet (DSB), if available for veh. and market
• Service report (DSB) for customers printed out/service booklet filled out

Signature.............................................

S		Input condition not OK:		ⓧ
Completed
■

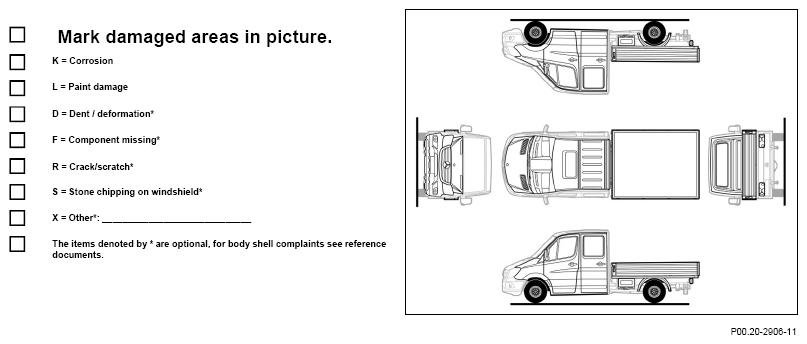

	Vehicle exterior
□	Check condition of vehicle exterior.	...............		◦
□	Check condition of windshield.	...............		◦	AP60.00-D-6048U
□	Check condition of wiper blades.	...............		◦	AP67.10-S-6750P
					AP82.30-S-8253P
					AP82.30-S-8249U
	Engine compartment
□	Check main circuit coolant level.	...............		◦
					AP20.30-S-2049U
	Tires, brakes (enter into table)
□	Assess condition/tire tread depth.	...............		◦
□	Assess condition of brakepads.	...............		◦
□	Assess condition of brake disks.	Not with super single tires or twin tires.		◦	AP42.10-S-4248U
		Not with super single tires or twin tires.			AP42.10-S-4249U
	Vehicle underside (optional)
□	Check condition of vehicle underside.	...............		◦
	Vehicle interior
□	Check warning and function indicator lamps in instrument cluster, check interior lighting.	...............		◦
□	Check horn for proper operation.	...............		◦	AP54.30-S-5449UU
□	Map data status, check update.	...............
		with code EJ9 (COMAND Online)			AP82.85-S-8251E
		Enter map data status: _______________
□	Read out and reset service.	...............
	i4	Enter starting distance here: ___________			AP00.20-S-0049U
□	Customer/vehicle-specific options  Additional operation, "Fill with AdBlue®"	............... □ Yes	............... □ No
□	Additional operation "Replace dust filter"	............... □ Yes	............... □ No
□	Additional operation for "ex-factor driving aids"	............... □ Yes	............... □ No
□	Additional operation for "body maintenance	............... □ Yes	............... □ No
