Remove/Install Rear Suspension Strut - AR32.25-P-1016SG

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

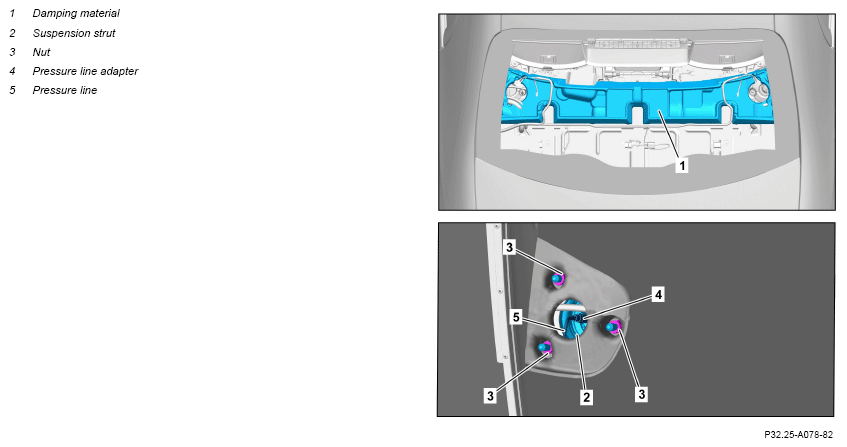

Fig 1: Rear Suspension Strut Components Location - Model 223 With Code Z07

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on air suspension		AH32.22-P-1000-01T
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove corresponding rear wheel.		AR40.10-P-1102A
2	Reduce pneumatic pressure of suspension struts (2) using diagnostic system.
			AD00.00-P-2000-06FR
		The complete wheels must not touch the ground. Otherwise the suspension struts (2) can be damaged and subsequently malfunction.
3	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
4	Remove rear shelf.		AR68.30-P-4581SG
5	Remove damping (1) under rear shelf.
6	Remove pressure line (5) from suspension strut (2) and seal openings with suitable stop plugs.	Pressure line to rear suspension strut/valve block	*BA32.22-P-1011-03F
		Socket wrench bit	Fig 2
		Record plug	Fig 5

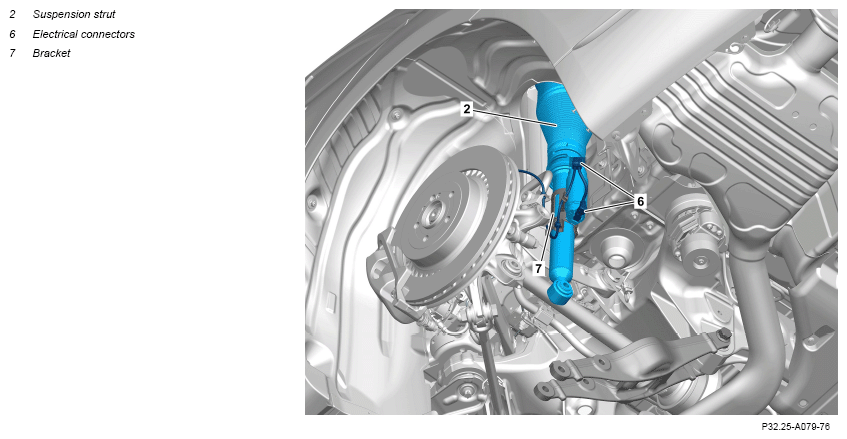

7	Disconnect electrical connectors (6) and expose electric lines from holder (7).
8	Remove rear axle spring.		AR32.20-P-0232SG
9	Lower vehicle.	Do not lower vehicle too far. Otherwise the folded-down spring link will be damaged.
10	Remove nuts (3) and take out suspension strut (2) in downward direction.	Helper required. Screw/nut, suspension strut at rear to body	*BA32.25-P-1004-04O
11	Remove pressure line adapter (4) from suspension strut (2).	Only when installing new suspension strut (2).
	Check
12	Check suspension strut (2).
		Model 223 with code Z07 (B7 armoring on special protection version) except code 490 (Electrohydraulic suspension) If there is a problem, ↓ Replace suspension strut (2).	AP32.25-P-3255SG
13	Check pressure line adapter (4) on suspension strut (2) for damage.	If there is a problem, ↓ use new pressure line adapter (4).
14	Check pressure line (5) for damage.	If there is a problem, ↓ repair pressure line connection.	AR32.22-P-2001-01S
		Knife	Fig 3
		Box wrench bit	Fig 4
		Socket wrench bit	Fig 2
15	Install in the reverse order.

Fig 2: Identifying Socket Wrench Bit (211 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Knife (000 589 12 28 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Box Wrench Bit (001 589 00 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
