Remove/Install Rear Axle Wheel Carrier - AR35.20-P-0115S

Model 223

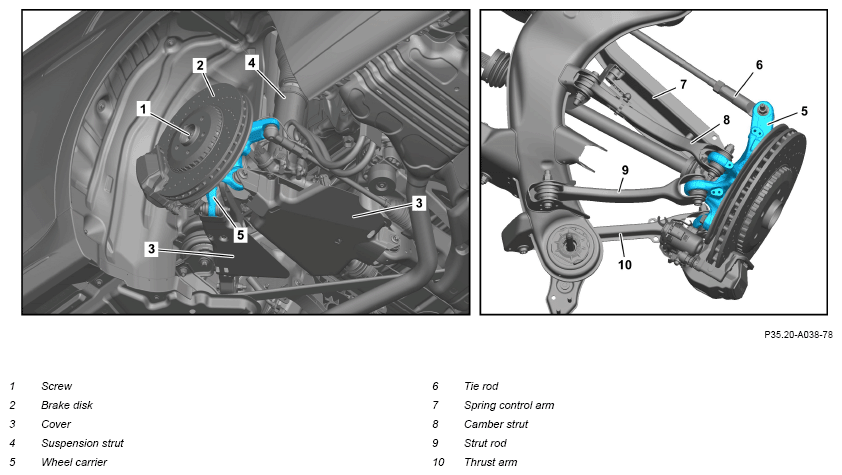

Fig 1: Rear Axle Wheel Carrier Components Location - Model 223 (Shown Except Code Z07)

Courtesy of MERCEDES-BENZ USA

Shown on vehicle except code Z07 (B7 armoring for special protection version)

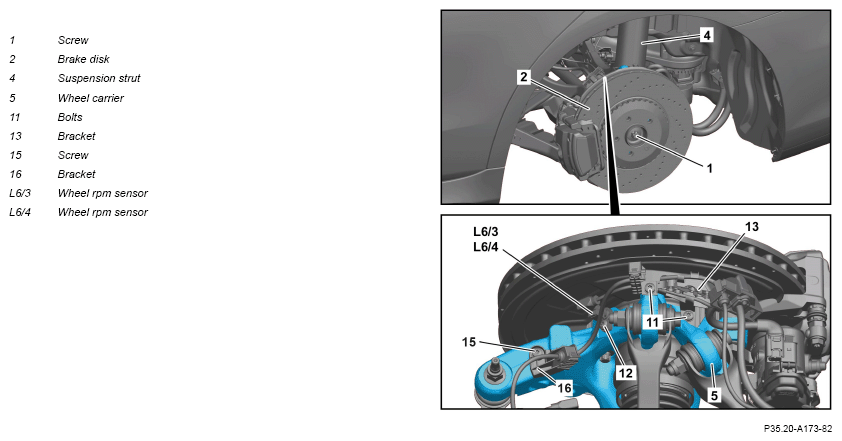

Shown on vehicle except code Z07 (B7 armoring for special protection version) and except code 200 (Conditionally automated driving)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

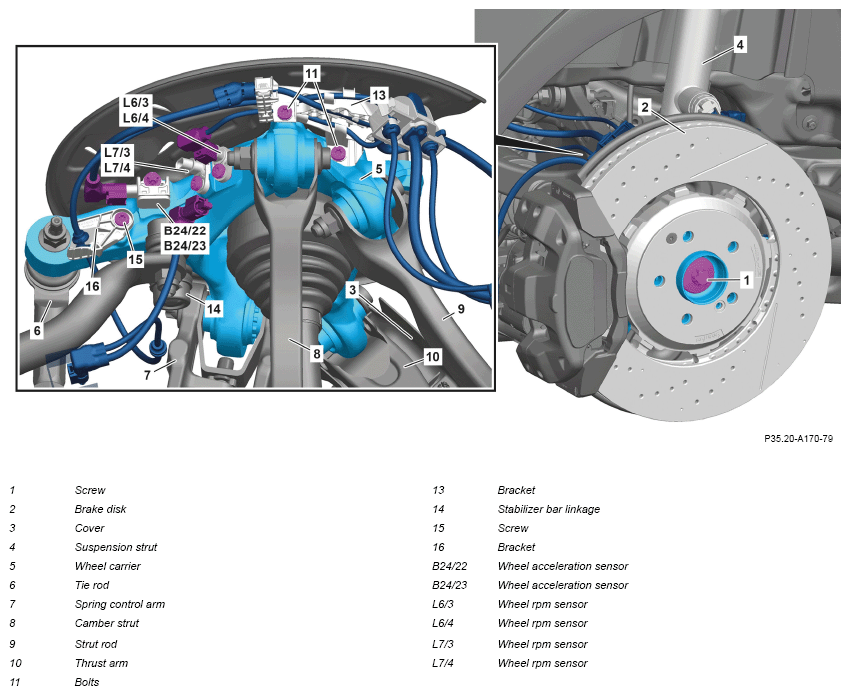

Shown on vehicle with code ME10 (Hybrid vehicle (plug-in, PHEV)) with engine M177.8

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on air suspension		AH32.22-P-1000-01T
Notice	Information on E-ACTIVE BODY CONTROL suspension		AH32.50-P-0002-01ME
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove hub cover from rear wheel.	If hub cover cannot be removed, ↓ remove rear wheel, remove hub cover and remount rear wheel.	AR40.10-P-1102A
2	Loosen screw (1) or nut of rear axle shaft.	The vehicle must be standing on its wheels for this. Rear axle shaft to rear axle shaft flange	*BA35.30-P-1001-01L
3	Drain hydraulic lines of electrohydraulic suspension using guided diagnosis.	Model 223 with code 490 (Electrohydraulic suspension) The complete wheels must not touch the ground. Otherwise, the suspension struts (4) will suffer initial damage and malfunction later on. The shutoff valves on the suspension strut (4) must be closed.	AR32.50-P-0042S
4	Reduce pneumatic pressure of suspension struts (4) using diagnostic system.
		The complete wheels must not touch the ground. Otherwise, the suspension struts (4) will suffer initial damage and malfunction later on.	AD00.00-P-2000-06FR
5	Remove rear wheel.		AR40.10-P-1102A
6	Remove brake disk (2).		AR42.10-P-0240S
7	Remove screw (1) or nut from rear axle shaft.	: Replace screw (1) or nut. Do not fully tighten screw (1) or nut yet.
8	Remove covers (3).	Model 223 except code Z07 (B7 armoring on special protection version)
9.1	Release and disconnect electrical connector of wheel speed rotational speed sensor (L6/3) and wheel speed rotational speed sensor (L6/4).	Model 223 except code 200 (Conditionally automated driving)
9.2	Release and disconnect electrical connectors of wheel speed rotational speed sensors (L6/3, L7/3) and wheel speed rotational speed sensors (L6/4, L7/4).	Model 223 with code 200 (Conditionally automated driving)
10	Release and disconnect electrical connector of wheel acceleration sensor (B24/22) and wheel acceleration sensor (B24/23).	Model 223 with engine 177.8 with code ME10 (Hybrid vehicle (plug-in, PHEV)) Model 223 with code 96B (Road noise cancellation via speakers (RNC))
11	Remove screws (11).	Screw, cable holder to wheel carrier	*BA42.30-P-1002-02M
12	Place holder (13) with electric lines to one side.	Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.
13	Remove screw (15).	Screw, cable holder to wheel carrier	*BA42.30-P-1002-02M
14	Place holder (16) with electric line to one side.	Do not crush or kink electric line or subject it to tension. This will result in damage to the electric line and may impair its function.
15.1	Remove rear axle spring.	Model 223 with code Z07 (B7 armoring on special protection version)	AR32.20-P-0232SG
15.2	Remove tie rod (6) from wheel carrier (5).	Model 223 except code Z07 (B7 armoring on special protection version) : Do not fully tighten screw of tie rod (6) until after wheel alignment measurement. Model 223 except code 201 (Rear axle steering) except code 216 (Rear axle steering with large angle) except code Z07 (B7 armoring on special protection version) Screw, tie rod to wheel carrier	*BA35.20-P-1001-04P
		Model 223 with code 201 (Rear axle steering) with code 216 (Rear axle steering with large angle) except code Z07 (B7 armoring on special protection version) Nut, tie rod to wheel carrier	*BA35.20-P-1007-04P
		Model 223 except code 201 (Rear axle steering) except code 216 Rear axle steering with large angle) except code Z07 (B7 armoring on special protection version) Screwdriver bit	Fig 3
16	Detach tension strut (9) from wheel carrier (5).	: Do not fully tighten screw of tension strut (9) until after wheel alignment measurement. Screw/Nut, strut rod to wheel carrier	*BA35.20-P-1002-03O
17	Remove camber strut (8) from wheel carrier (5).	: Do not fully tighten screw of camber strut (8) until after wheel alignment measurement. Screw camber strut to wheel carrier	*BA35.20-P-1002-02N
18	Remove thrust arm (10) from wheel carrier (5).	: Do not fully tighten screw of thrust arm (10) until after wheel alignment measurement.
		Screw/nut, thrust arm to wheel carrier	*BA35.20-P-1002-05M
19	Detach spring link (7) from wheel carrier (5).	Model 223 except code Z07 (B7 armoring on special protection version) : Do not fully tighten screw of spring link (7) until after wheel alignment measurement. Screw, Spring control arm to wheel carrier	*BA35.20-P-1001-01J
20	Remove suspension strut (4) from spring link (7).	Model 223 except code Z07 (B7 armoring on special protection version) Nut, suspension strut at rear to spring control arm	*BA32.25-P-1005-04O
21	Remove torsion bar linkage (14) from wheel carrier (5).	Model 223 except code 490 (Electrohydraulic suspension) Model 223 except code 201 (Rear axle steering) except code 216 (Rear axle steering) except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring for special protection version) model 223 with code 201 (Rear axle steering) except code 490 (Electrohydraulic suspension) model 223 with code 216 (Rear axle steering) except code 490 (Electrohydraulic suspension) model 223 with code Z07 (B7 armoring for special protection version) except code 490 (Electrohydraulic suspension) Screw/Nut, torsion bar linkage to wheel carrier	*BA32.20-P-1003-04V
22	Remove wheel carrier (5) from rear axle shaft.	If the rear axle shaft in the wheel carrier (5) is seized, ↓ detach rear axle shaft from wheel carrier (5).	AR35.30-P-0115-03LF
		Extraction and insertion tool	Fig 2
23.1	Remove wheel bearing.	Model 223 except code Z07 (B7 armoring on special protection version) Only when replacing wheel carrier (5).	AR35.20-P-0302S
23.2	Remove wheel hub.	Model 223 with code Z07 (B7 armoring on special protection version) Only when replacing wheel carrier (5).	AR35.20-P-0311SG
24	Remove brake cover plate of rear disk brake.	Only when replacing wheel carrier (5).	AR42.10-P-0006S
25	Install in the reverse order.
	Measure
26	Perform wheel alignment measurement.		AR40.20-P-0200S

Fig 2: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
