Remove/Install Rear Axle Wheel Bearing - AR35.20-P-0302S

Model 223

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

Shown with code 201 (Rear axle steering) on left side of vehicle

Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

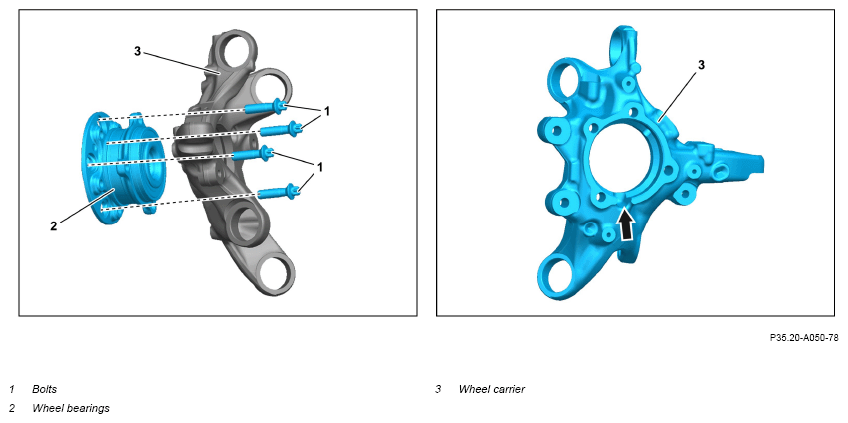

1	Remove corresponding wheel carrier (3).		AR35.20-P-0115S
2	Remove bolts (1).	: Tighten screws (1) in a crosswise pattern. Screw, wheel bearing to wheel carrier (multi-link axle)	*BA35.20-P-1001-06G
3	Remove wheel bearing (2).	The wheel bearing (2) and the flange cannot be separated from each other.
	Clean
4	Clean water drain in wheel carrier (3) (arrow).
5	Clean contact surface of wheel bearing (2).
6	Install in the reverse order.
