Floor Above Rear Axle Removal And Installation - Ar63.40-P-1200S

Model 223.0/1/9

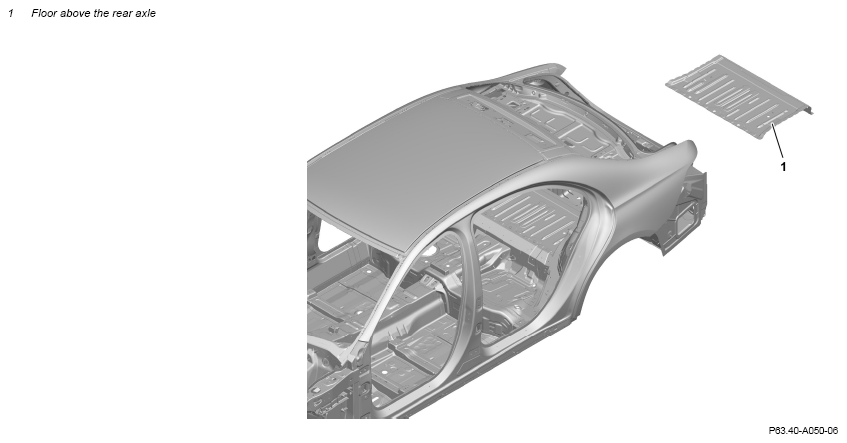

Fig 1: Rear Floor Panel Component Location (Model 223.0/1/9)
G16191770Courtesy of MERCEDES-BENZ USA
DANGER Risk of explosion  from aluminum grinding dust, risk of injury to respiratory system from inhaling dust Wear dust filter mask, safety glasses, and protective gloves.
Use a suitable, grounded dust extraction system.
AS60.00-Z-0007-01N
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice General information on body repair   AH60.00-P-0001-01S
Notice Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
  Note on working on aluminum components and vehicles   AH60.00-P-0034-01RG
  General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove detachable parts in area of repair point.
2 Cover all detachable parts remaining in vehicle with spark protection blankets.
3 Remove spare wheel well.   AR64.20-P-1245S
4 Remove floor above the rear axle (1).   AR63.40-P-1200-01S
INSTALLING Install
  General information on riveting   AH60.00-P-0003-01S
5 Prepare floor above the rear axle (1).   AR63.40-P-1200-02S
6 Install floor above the rear axle (1).   AR63.40-P-1200-03S
    Parts kit for 2-component adhesive for body *BR00.45-Z-1162-02A
    Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) *BR00.45-Z-1012-13A
    Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1035-13A
    Countersunk-head blind rivet Z1 6.4x14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1043-13A
    Countersunk-head blind rivet Z2 6.4x15.5 (clamping range 3 mm to 5 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1044-13A
    Countersunk-head blind rivet Z3 6.4x17.0 (clamping area 4.5 mm to 6.5 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1055-13A
    Countersunk-head blind rivet Z4 6.4x19.0 (clamping range 6 mm to 8 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1056-13A
    Self-tapping fillister head screw M5 *BR00.45-Z-1058-13A
7 Install spare wheel well.   AR64.20-P-1245S
8 Remove spark protection blankets.
9 Clean repair area.
10 Prime repair areas using a primer filler
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting IMPORTANT Use only primer fillers approved by manufacturer. See guidelines for paint technology in the workshop portal. AH98.00-P-0003-01A
11 Seal seam after repair.   AR97.10-P-4000S
12 Paint repair areas and adjacent surfaces
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting IMPORTANT Only use paints approved by the manufacturer. See guidelines for paint technology in the workshop portal. AH98.00-P-0003-01A
13 Supplement cavity preservation.   AR97.20-P-1500S
14 Reinstall detachable parts in area of repair point.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1012-13A Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) A 004 990 16 97
BR00.45-Z-1035-13A Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) A 000 991 76 32
BR00.45-Z-1043-13A Countersunk-head blind rivet Z1 6.4x14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) A 000 991 82 32
BR00.45-Z-1044-13A Countersunk-head blind rivet Z2 6.4x15.5 (clamping range 3 mm to 5 mm, draw-off strength min. 15.5 kN) A 000 991 83 32
BR00.45-Z-1055-13A Countersunk-head blind rivet Z3 6.4x17.0 (clamping area 4.5 mm to 6.5 mm, draw-off strength min. 15.5 kN) A 000 991 86 32
BR00.45-Z-1056-13A Countersunk-head blind rivet Z4 6.4x19.0 (clamping range 6 mm to 8 mm, draw-off strength min. 15.5 kN) A 000 991 87 32
BR00.45-Z-1058-13A Self-tapping fillister head screw M5 A 011 990 32 04
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
