Floor Above Rear Axle Installation - Ar63.40-P-1200-03S
Model 223.0/1/9
Countersunk-head rivet (Z)
- Z1 = Countersunk-head rivet 6.4x14.0
- Z2 = Countersunk-head rivet 6.4x15.5
- Z3 = Countersunk-head rivet 6.4x17.0
- Z4 = Countersunk-head rivet 6.4x19.0
- Z5 = Countersunk-head rivet 6.4x21.0
Blind rivet (Y)
- Y1 = Rivet 6.4x12
- Y2 = Rivet 6.5x12.5
- Y3 = Rivet 6.5x14.5
- Y4 = Rivet 6.4M6
- Y5 = Rivet 6.4
- Y6 = rivet 6.5x13.5
- Y7 = rivet 6.4x14
- Y8 = rivet 6.4x17
- Y9 = rivet 6.4x20
Flow-form rivet with countersunk head (X)
- X1 = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
- X2 = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
- X3 = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
- X4 = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
- X5 = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
- X6 = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
Flow-form rivet (W)
- W1 = Flow-form rivet structure with 3.5 mm clamping range
- W3 = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
- W4 = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
- W5 = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
- W6 = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
- W7 = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range
Blind rivet (V)
- V1 = rivet 3.2x4.5
- V2 = rivet 3.2x6.5
Blind rivet (U)
- U1 = rivet 3.2x9.5
Blind rivet with countersunk head (T)
- T1 = blind rivet with countersunk head 3.0 mm to 5.0 mm clamping range
- T2 = blind rivet with countersunk head 1.5 mm to 3.0 mm clamping range
- X7 = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range
The following steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle. The superordinate service document as well as the safety information in the service document must be observed.
The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also prescribes the direction in which the rivets must be set.
- Install floor above the rear axle (1), fit and fix in place.

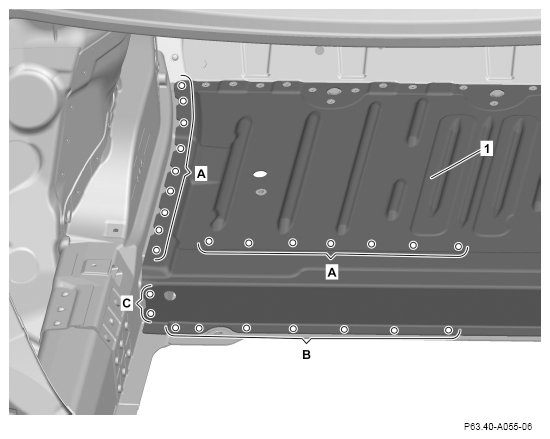

- Drill rivet holes in the floor above the rear axle (1) with ø 6.7 mm (areas A, B).
- Countersink rivet holes in the floor above the rear axle (1) (area B).
- Drill holes for screws in the floor above the rear axle (1) with ø 4.2 mm (area C).
Max. drilling depth 18 mm.

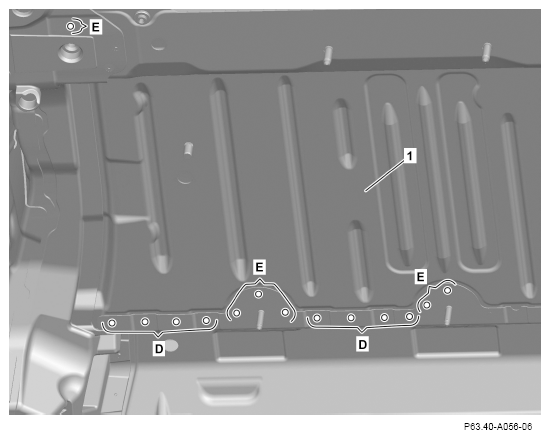

- Drill rivet holes in the floor above the rear axle (1) with ø 6.7 mm (areas D, E).
- Countersink rivet holes in the floor above the rear axle (1) (areas E).
- Remove floor above the rear axle (1).
- Deburr rivet holes in the floor above the rear axle (1) and in the body on both sides.
- Remove drilling chips.

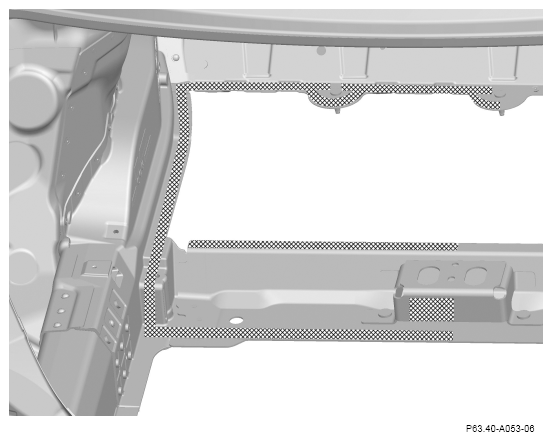

- Apply 2-component adhesive to body in cross-hatched areas.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Install floor above the rear axle (1) and fix in place.

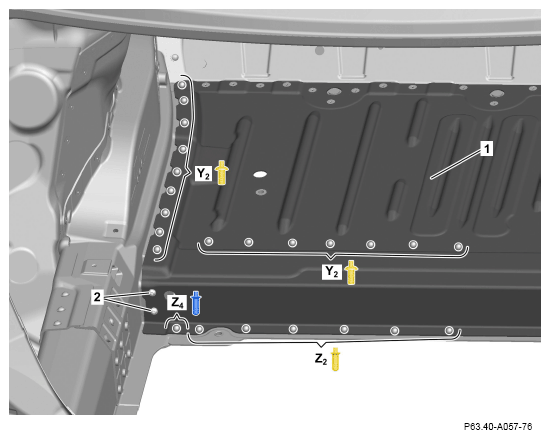

- Rivet floor above the rear axle (1) with rivets ø 6.5x12.5 (areas Y2 ).
- Rivet floor above rear axle (1) with ø 6.3x16 countersunk-head rivet (area Z2 ).
- Rivet floor above rear axle (1) with ø 6.3x19.5 countersunk-head rivet (area Z4 ).
- Shorten screws (2) to a length of 11 mm.
- Position screws (2).

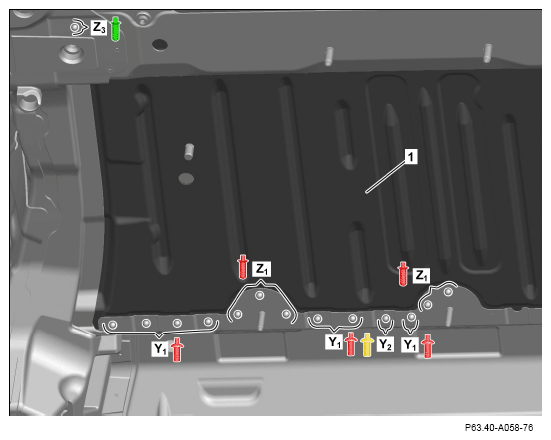

- Rivet floor above rear axle (1) with ø 6.3x12.5 rivets (areas Y1 ).
- Rivet floor above the rear axle (1) with rivets ø 6.5x12.5 (area Y2 ).
- Rivet floor above rear axle (1) with ø 6.3x17.5 countersunk-head rivet (area Z3 ).
- Rivet floor above rear axle (1) with ø 6.3x14.5 countersunk-head rivets (areas Z1
).
