Remove/Install Side Paneling In Rear - AR68.30-P-4780SA
Model 223
with code 223 (Electric backrest adjustment and head restraints)
except code 224 (Individual rear seats)
Model 223
with code 223 (Electric backrest adjustment and head restraints)
with code 224 (Individual rear seats)

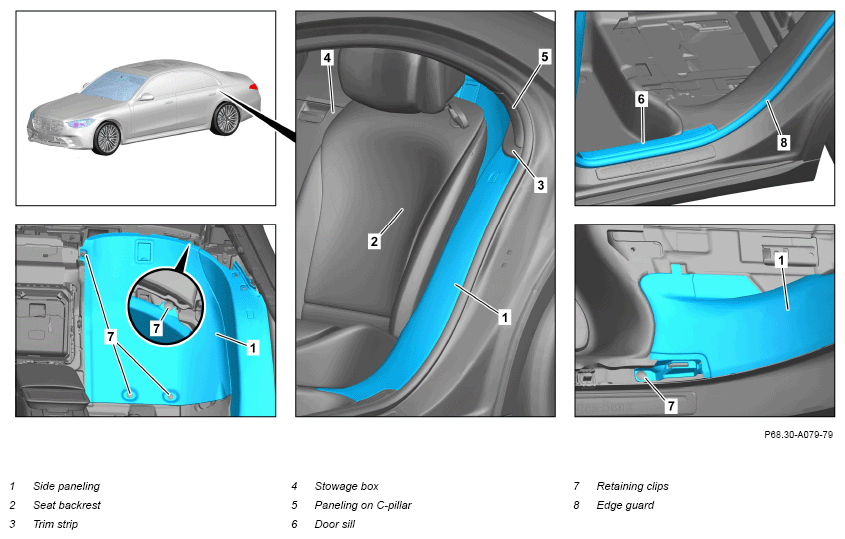

Shown with code 224 (Design individual rear seat system) on the left side of the vehicle
| Remove/install | |||
| 1 | Remove corresponding seat backrest (2) in the rear. | AR91.12-P-1713SA | |
| 2 | Remove trim strip (3). | AR68.30-P-1460S | |
| 3.1 | Remove stowage compartment in the rear passenger compartment. | Model 223 with code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats) |
|
| Model 223 with code 223 (Electric backrest adjustment and head restraints) with code Z07 (B7 armoring on special protection version) except code 224 (Individual rear seats) |
AR68.20-P-2500SG | ||
| Model 223 with code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats) except code Z07 (B7 armoring on special protection version) |
AR68.20-P-2500S | ||
| 3.2 | Remove stowage box (4). | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) |
|
| AR68.20-P-0007S | |||
| 4 | Remove paneling on C-pillar (5). | AR68.30-P-4490S | |
| 5 | Unclip door sill (6) upward and remove. | Fig 2 | |
| 6 | Unclip retaining clips (7). | Fig 1 | |
| 7 | Unclip side paneling (1) and remove. | ||
| Fig 2 | |||
| 8 | Install in the reverse order. |
