Remove/Install Stowage Compartment In Rear - AR68.20-P-2500SG

Model 223

with code 223 (Electric backrest adjustment and head restraints)

with code Z07 (B7 armoring on special protection version)

except code 224 (Individual rear seats)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove armrest.		AR91.12-P-1744SG
2	Remove center trim strip behind rear seat.		AR68.30-P-1460S
3	Remove center head restraint in rear passenger compartment.		AR91.16-P-1770SA

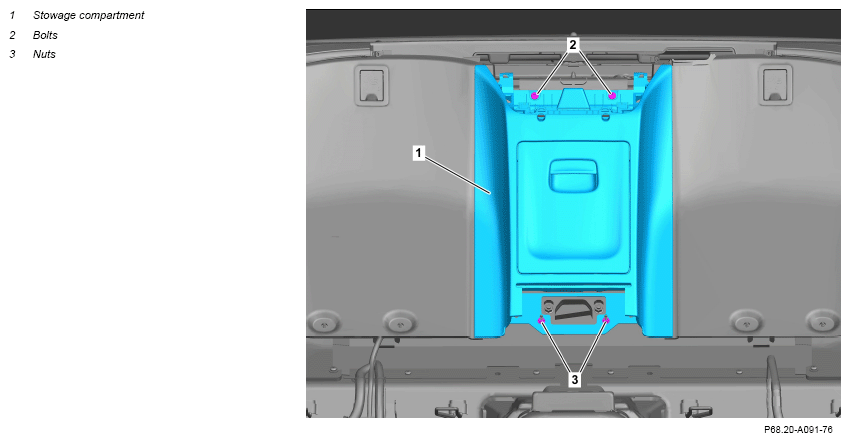

4	Remove screws (2).	Screw, stowage compartment in rear passenger compartment to rear panel	*BA91.12-P-1005-03L
5	Remove nuts (3).
6.1	Release stowage compartment (1), disconnect electrical connector and remove stowage compartment (1).	Model 223 with code 223 (Electric backrest adjustment and head restraints) with code Z07 (B7 armoring on special protection version) with code Z22 (Panic alarm system) except code 224 (Individual rear seats)
6.2	Remove stowage compartment (1).	Model 223 with code 223 (Electric backrest adjustment and head restraints) with code Z07 (B7 armoring on special protection version) except code 224 (Individual rear seats) except code Z22 (Panic alarm system)
7	Install in the reverse order.
