Remove/install left charge air distributor - AR09.41-P-8684MNM
Engine 177 in model 217, 222
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove engine with front axle carrier | AR01.10-P-2500MNM | |
| 2 | Remove charge air cooler | AR09.41-P-6817MNM | |

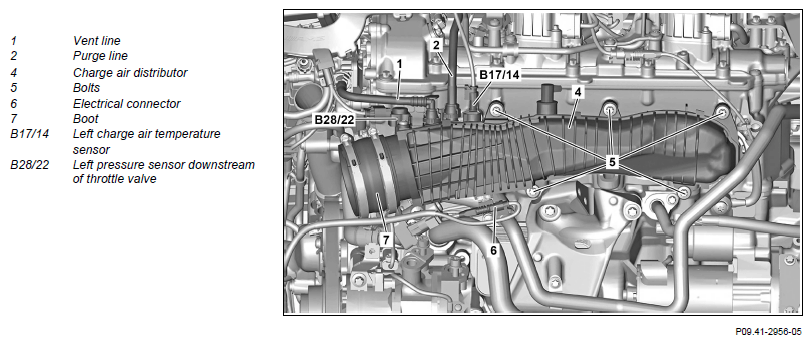

| 3 | Release and disconnect electrical connector o the left charge air temperature sensor (B17/14) | f | |
| 4 | Remove purge line (2) on charge air distributor (4) | ||
| 5 | Remove bleed line (1) on charge air distributor (4) | ||
| 6 | Release and disconnect electrical connector o pressure sensor downstream of left throttle valve (B28/22) | f | |
| 7 | Unclip electrical connector (6) and electric line from charge air distributor (4) | ||
| 8 | Remove screws/bolts (5) | AR09.41-P-8683-01MNE | |
| *BA09.41-P-1004-01X | |||
| 9 | Remove charge-air distributor (4) | Lubricant |
*BR00.45-Z-1032-06A |
| 10 | Remove pressure sensor downstream of left throttle valve (B28/22) | When replacing the charge air distributor (4). | AR09.41-P-1030MNM |
| 11 | Remove left charge air temperature sensor (B17/14) | When replacing the charge air distributor (4). | AR09.41-P-0041MNM |
| 12 | Remove boot (7) | When replacing the charge air distributor (4). |
*BA09.41-P-1002-01X |
| 13 | Remove guides on seals of the charge air distributor (4) | When replacing the charge air distributor (4). | |
| 14 | Install in the reverse order |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1002-01X | Bolt, clamp for charge air hose to charge-air distributor | Nm | 6 |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1004-01X | Bolt, charge air distributor to cylinder head | Nm | 13 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1032-06A | Lubricant | A 000 989 08 60 |
