Remove/install left charge air temperature sensor (downstream of throttle valve) - AR09.41-P-0041MNM
Engine 177 in model 217, 222

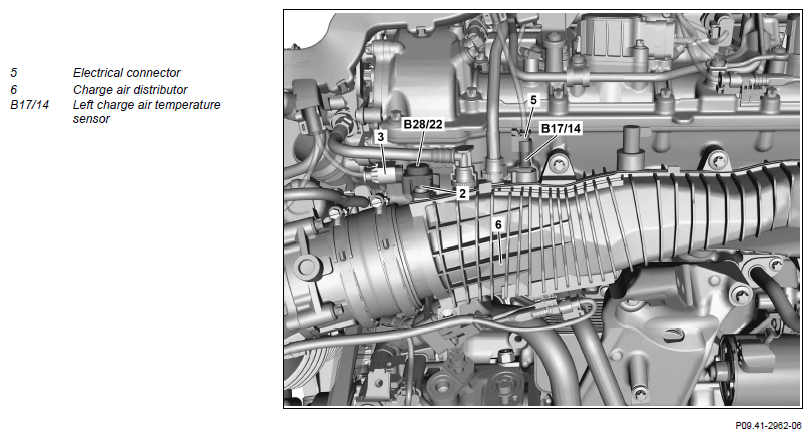

Fig 1: Left Charge Air Temperature Sensor (Downstream Of Throttle Valve) Component Location - Engine 177 In Model 217
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove left charge air temperature sensor (B17/14) on charge air distributor (6) | ||
| 3 | Release and disconnect electrical connection (5) | ||
| 4 | Seal opening on charge-air distributor (6) using suitable stop plug | Fig 2 | |
| 5 | Install in the reverse order | ||
| 6 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run and check engine for proper operation and leaktightness | ||
| 8 | Install upper engine cover |
