Remove/Install Parktronic System (PTS) Control Unit - AR54.65-P-0006LCM
Model 217.4
as of model year 2018
with code 235 (Active Parking Assist with PARKTRONIC)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission parking system control unit (N62) | When replacing parking system control unit (N62). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove carrier plate for audio components | AR82.60-P-7601LC | |
| 3 | Remove electric motor for trunk separator | AR68.50-P-3004LCA | |

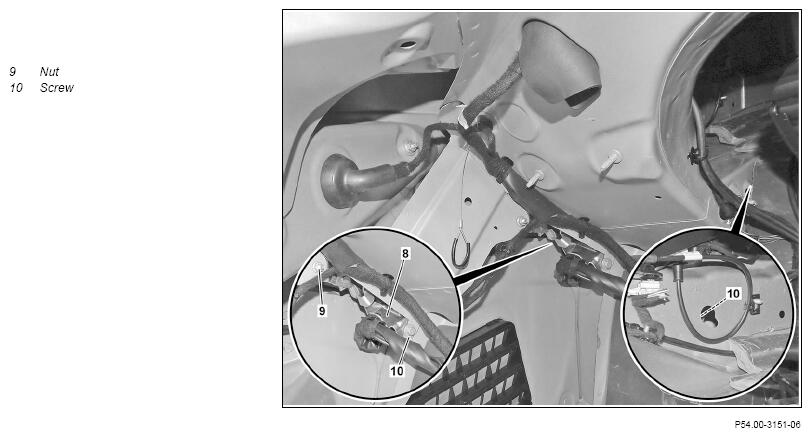

| 4 | Remove screw/bolts (10) | ||
| 5 | unscrew nut (9) | ||

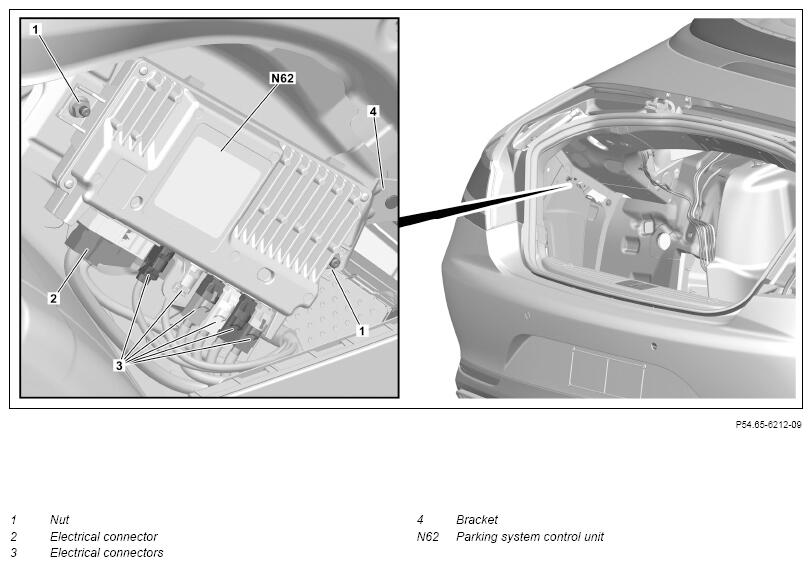

| 6 | Guide holder (4) with parking system control unit (N62) downwards out of side pocket | ||
| 7 | Disconnect electrical connection (2) | ||
| 8 | Detach electrical connections (3) | ||
| 9 | Remove holder (4) with parking system control unit (N62) from vehicle | ||
| 10 | Unscrew nuts (1) and remove parking system control unit (N62) | When replacing parking system control unit (N62). | |
| 11 | Install in the reverse order |
