Remove/Install 12 V Socket In Trunk - AR54.10-P-0016LC

Model 217

Courtesy of MERCEDES-BENZ USA

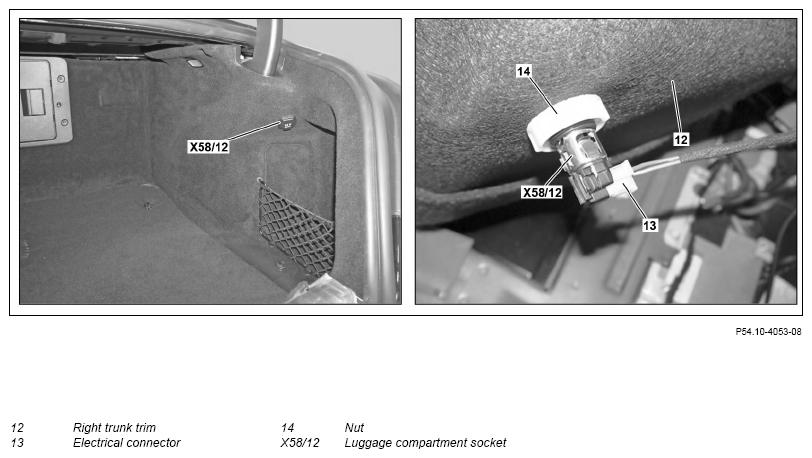

Shown: model 217.382

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components. Model 217 with code P17 (KEYLESS-GO package)	AS00.00-Z-0009-01A
	Notes on sensor system for trunk lid opening/closing	Model 217 with code P17 (KEYLESS-GO package)	AH80.61-P-0001-01A
	Remove/install
1	Switch off ignition and keep transmitter key outside transmitter range (at least 2 m)
2	Unfasten right trunk trim (12) in rear area	Model 217.3	AR68.30-P-4600LC
		Model 217.4	AR68.30-P-4800LCA
3	Release and disconnect electrical connection (13)
4	Unscrew nut (14) and pull trunk socket (X58/12) out of right trunk trim (12)	: Align the cover of the trunk socket (X58/12) horizontally before tightening the nut (14).
5	Install in the reverse order
