Automatic Interior Lights Control, Function - GF82.20-P-2200LF
Model 217, 222

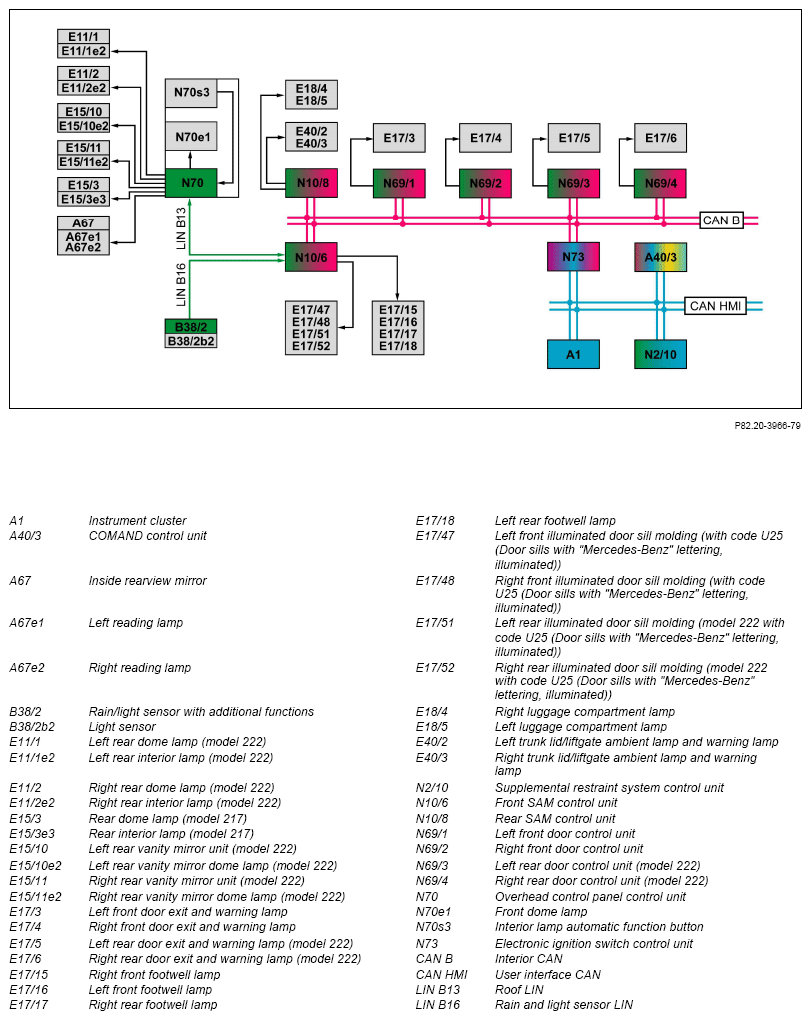

Up to model year 2018

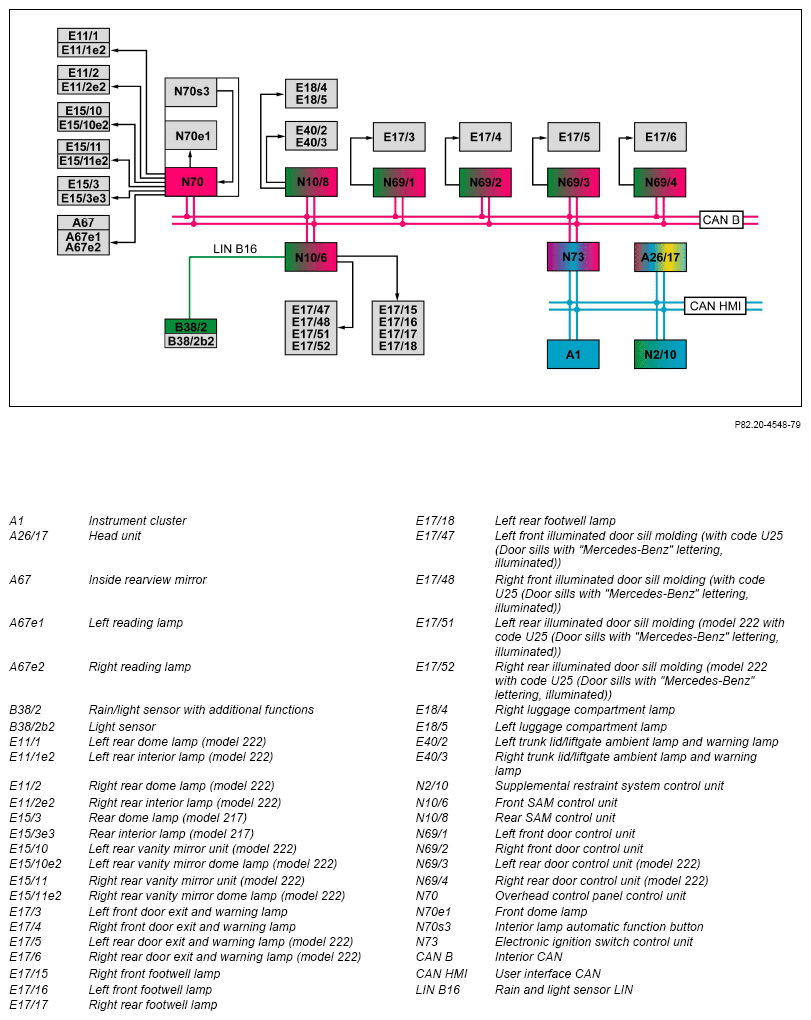

As of model year 2018
Function requirements, general
- No overvoltage or undervoltage
Automatic interior lights control in general
The automatic interior lights control implements the actuation of all interior illumination components. The appropriate requests are generated automatically. The master control unit for the automatic interior lights control is the front SAM control unit.
The automatic interior lights control function encompasses the following subfunctions:
- Locator lighting
- Orientation lighting
- Warning and exit illumination
- Luggage compartment illumination
- Interior illumination with anti-theft alarm system (ATA [EDW]) alarm (with code 551 (Anti-theft alarm system (ATA [EDW])))
- Interior lighting after accident
Additional function requirement for locator lighting
- Automatic interior lights switched on using the interior lamp automatic function button
The overhead control panel control unit directly reads in the status of the interior lamp automatic function button and sends it via the roof LIN (up to model year 2018) or interior CAN (as of model year 2018) to the front SAM control unit.
Locator lighting
When unlocking the vehicle via radio, the front SAM control unit activates the locator lighting.
The electronic ignition lock control unit sends the status of the central locking (CL [ZV]) to the front SAM control unit via interior CAN. The front SAM control unit then sends the request to switch on the interior lighting via the roof LIN (up to model year 2018) or interior CAN (as of model year 2018) to the overhead control panel control unit.
The overhead control panel control unit then actuates the following components directly:
- Left reading lamp
- Right reading lamp
- Left rear interior lamp (model 222)
- Right rear interior lamp (model 222)
- Rear interior lamp (model 217)
- Left rear vanity mirror dome lamp (model 222)
- Right rear vanity mirror dome lamp (model 222)
- Front dome lamp
If the ambient illumination function is activated through the instrument cluster, it automatically switches itself on through the central locking when the vehicle is unlocked. This leads to the fact that the search and symbol illumination is switched on.
The front SAM control unit also actuates the following components directly:
- Right front footwell lamp
- Left front footwell lamp
- Right rear footwell lamp
- Left rear footwell lamp
When the central locking is unlocked, all lamps are switched off after expiration of 40 s or immediately if the vehicle is locked again within 3 s after unlocking it.
Additional function requirement for orientation lighting
- Automatic interior lights switched on using the interior lamp automatic function button
The overhead control panel control unit directly reads in the status of the interior lamp automatic function button and sends it via the roof LIN (up to model year 2018) or interior CAN (as of model year 2018) to the front SAM control unit.
Orientation lighting
When circuit 15C is switched off, the front SAM control unit activates the orientation lighting.
The electronic ignition lock control unit sends the status of circuit 15 to the front SAM control unit via the interior CAN. The front SAM control unit then sends the request to switch on the interior lighting via the roof LIN (up to model year 2018) or interior CAN (as of model year 2018) to the overhead control panel control unit.
The overhead control panel control unit then actuates the following components directly:
- Left reading lamp
- Right reading lamp
- Left rear interior lamp (model 222)
- Right rear interior lamp (model 222)
- Rear interior lamp (model 217)
- Left rear vanity mirror dome lamp (model 222)
- Right rear vanity mirror dome lamp (model 222)
- Front dome lamp
The front SAM control unit also actuates the following components directly:
- Right front footwell lamp
- Left front footwell lamp
- Right rear footwell lamp
- Left rear footwell lamp
When the vehicle doors are closed, all lights that are switched on are switched off once the OFF delay time has expired. The switch-off delay time can be switched on or off in the "Settings" menu of the COMAND controller unit (up to model year 2018) or head unit (as of model year 2018). The corresponding selection is sent by the COMAND controller unit (up to model year 2018) or the head unit (as of model year 2018) via the user interface CAN, electronic ignition lock control unit and interior CAN to the front SAM control unit.
Additional function requirements for warning and exit illumination
- Automatic interior lights switched on using the interior lamp automatic function button
The overhead control panel control unit directly reads in the status of the interior lamp automatic function button and sends it via the roof LIN (up to model year 2018) or interior CAN (as of model year 2018) to the front SAM control unit.
Warning and exit illumination
When a vehicle door is opened, the front SAM control unit activates the warning and exit illumination.
The front door control unit transmit the status of the front doors (open or closed) to the front SAM control unit via interior CAN.
The rear door control units send the status of the rear doors (open or closed) (on model 222) to the front SAM control unit over the interior CAN.
The front SAM control unit evaluates all incoming information and sends the request to switch on the interior lighting via the roof LIN (up to model year 2018) or interior CAN (as of model year 2018) to the overhead control panel control unit.
The overhead control panel control unit actuates the following components directly:
- Left reading lamp
- Right reading lamp
- Left rear interior lamp (model 222)
- Right rear interior lamp (model 222)
- Rear interior lamp (model 217)
- Left rear vanity mirror dome lamp (model 222)
- Right rear vanity mirror dome lamp (model 222)
- Front dome lamp
The front SAM control unit also sends the request to switch on the warning and exit illumination to the following control units over the interior CAN:
- Left front door control unit
- Right front door control unit
- Left rear door control unit (model 222)
- Right rear door control unit (model 222)
Depending on which vehicle doors were opened, the following components of the warning and exit illumination are actuated:
- Left front door exit and warning lamp by the left front door control unit
- Right front door exit and warning lamp by the right front door control unit
- Left rear door exit and warning lamp from left rear door control unit (model 222)
- Right rear door exit and warning lamp from right rear door control unit (model 222)
The front SAM control unit also actuates the following footwell illumination components directly:
- Right front footwell lamp
- Left front footwell lamp
- Right rear footwell lamp
- Left rear footwell lamp
In vehicles with code U25 (Door sills with "Mercedes-Benz" lettering, illuminated), the front SAM control unit actuates the following entrance illumination components directly:
- Left front illuminated door sill molding
- Right front illuminated door sill molding
- Left rear illuminated door sill molding (model 222)
- Right rear illuminated door sill molding (model 222)
The illuminated door sill moldings are actuated with different maximum values depending on the ambient brightness. The ambient brightness is detected by the light sensor. The rain/light sensor with additional functions reads in the signals of the light sensor directly, evaluates them and transmits information about the ambient brightness (dimness level) via the rain/light sensor LIN to the front SAM control unit.
To preserve the on-board electrical system battery (G1), with circuit 15 Off all the activated lamps are switched off after 5 min. when a vehicle door is open and 8 s after the closing of the last vehicle door.
Additional function requirement for trunk illumination
- Vehicle stationary
A stationary vehicle is defined via the vehicle speed. The instrument cluster sends the vehicle speed to the front SAM control unit over the user interface CAN (CAN HMI), electronic ignition lock control unit and interior CAN.
Luggage compartment illumination
When the trunk lid is opened, the front SAM control unit activates the trunk illumination.
The rear SAM control unit sends the status of the trunk lid to the front SAM control unit via interior CAN. Then the front SAM control unit transmits the request to switch on the trunk illumination via the interior CAN to the rear SAM control unit.
The rear SAM control unit actuates the following components directly:
- Right luggage compartment lamp
- Left luggage compartment lamp
- Left trunk lid/liftgate ambient lamp and warning lamp
- Right trunk lid/liftgate ambient lamp and warning lamp
After closing the trunk lid, all switched-on lights are switched off.
To preserve the on-board electrical system battery, all the lights that are switched on are switched off after t = 5 min with the trunk lid open and circuit 15 OFF.
Interior illumination for ATA [EDW] alarm (with code 551 (Anti-theft alarm system (ATA [EDW])))
Immediately after triggering an ATA [EDW] alarm, the front SAM control unit activates the following interior illumination functions:
- Locator lighting
- Search and symbol illumination
- Ambiance illumination (with CODE 877 (Ambiance illumination))
Additional function requirement for interior illumination after an accident
- Vehicle stationary
A stationary vehicle is defined via the vehicle speed. The instrument cluster sends the vehicle speed to the front SAM control unit over the user interface CAN (CAN HMI), electronic ignition lock control unit and interior CAN.
Interior lighting after accident
After an accident with airbag deployment, the front SAM control unit activates the interior illumination.
The interior illumination is actuated in order to provide better orientation for the vehicle occupants and the first aiders following an accident.
If the supplemental restraint system control unit recognizes an accident event, its sends the crash signal to the front SAM control unit over the user interface CAN, electronic ignition lock control unit and interior CAN.
The front SAM control unit additionally recognizes a crash event by evaluating the signals of the integrated crash sensor.
The front SAM control unit evaluates all incoming information and activates the following interior illumination functions:
- Locator lighting
- Search and symbol illumination
- Ambiance illumination (with CODE 877 (Ambiance illumination))
