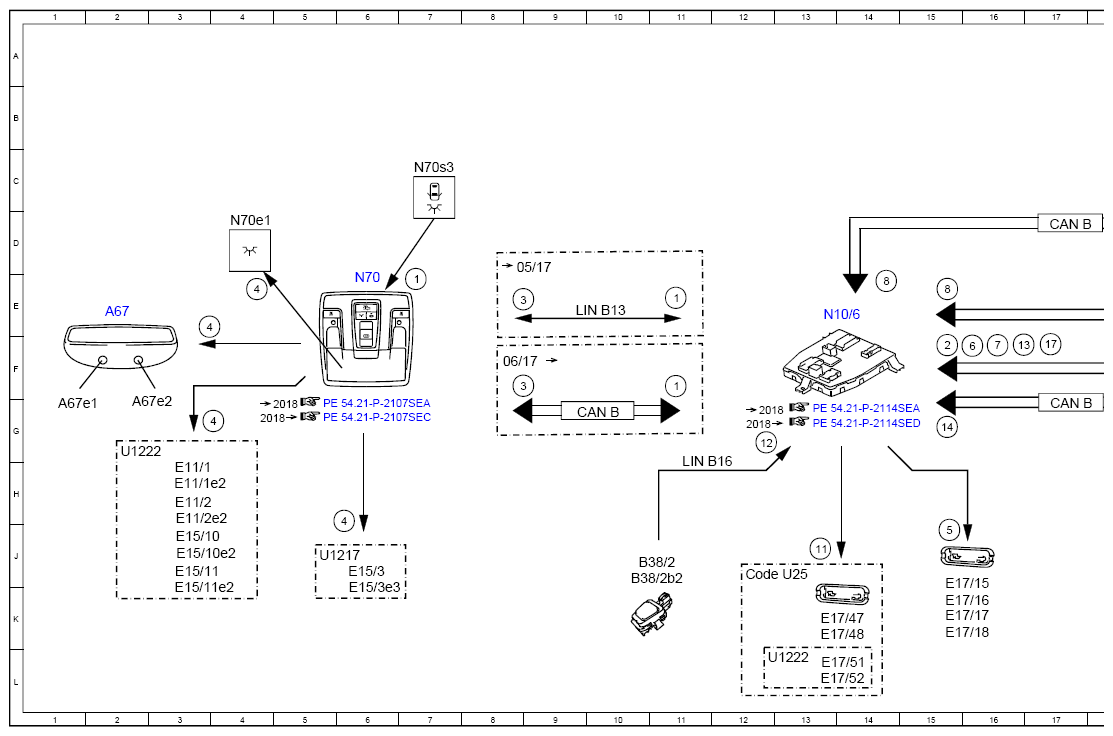

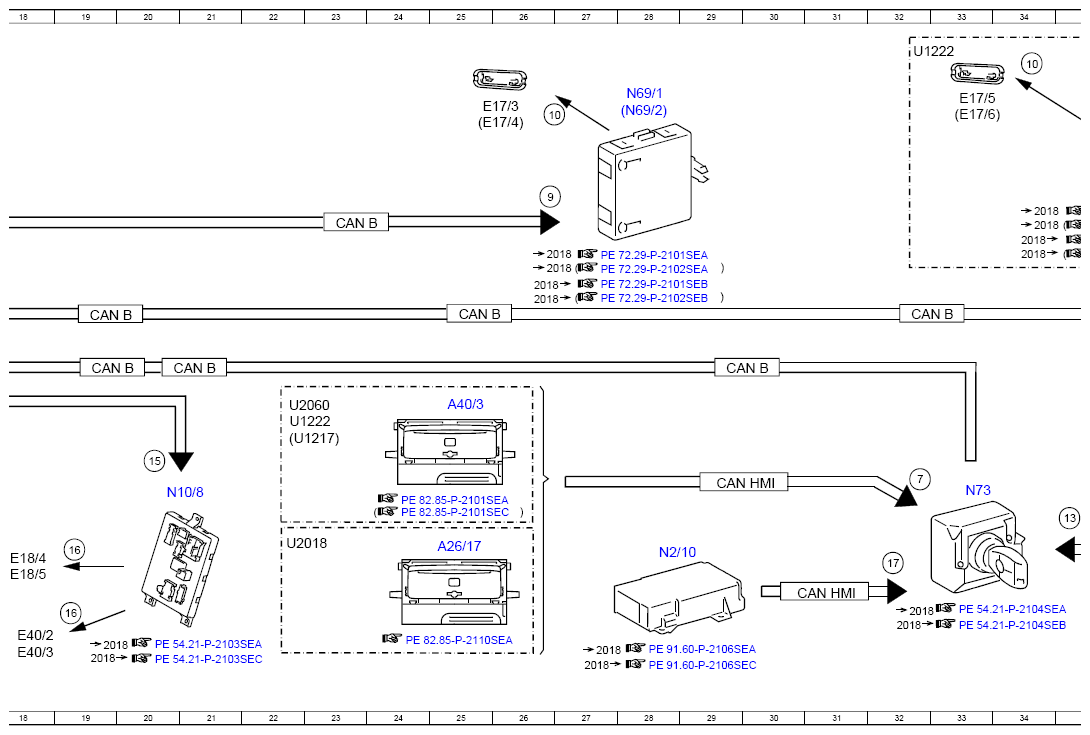

Automatic Interior Lights Control Electrical Function Schematic - PE82.20-P-2052-97SEA
Model 217, 222
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Automatic function switch, status | 7E |
| 1 | Automatic function switch, status | 11E |
| 1 | Automatic function switch, status | 11F |
| 10 | Exit and warning lamp, actuation | 26B |
| 10 | Exit and warning lamp, actuation | 34A |
| 11 | Illuminated door sill molding actuation | 13J |
| 12 | Dusk setting, signal | 12G |
| 13 | Vehicle speed, signal | 35H |
| 13 | Vehicle speed, signal | 16F |
| 14 | Trunk lid lock main catch switch, status | 15G |
| 15 | Ambient lamp, request | 20H |
| 16 | Ambient lamp, actuation | 19J |
| 16 | Ambient lamp, actuation | 19K |
| 17 | Crash, signal | 32J |
| 17 | Crash, signal | 17F |
| 2 | Central locking, status | 15F |
| 3 | Interior lamp, request | 8E |
| 3 | Interior lamp, request | 8F |
| 4 | Interior lamp, actuation | 4G |
| 4 | Interior lamp, actuation | 3E |
| 4 | Interior lamp, actuation | 4E |
| 4 | Interior lamp, actuation | 6J |
| 5 | Footwell lamp, actuation | 15J |
| 6 | Circuit 15, status | 16F |
| 7 | OFF delay time, status | 32H |
| 7 | OFF delay time, status | 16F |
| 8 | Main locking position microswitch, status | 14E |
| 8 | Main locking position microswitch, status | 15E |
| 9 | Exit and warning lamp, request | 26C |
| 9 | Exit and warning lamp, request | 35E |
| A1 | Instrument cluster | 38J |
| A26/17 | Head unit | 25J |
| A40/3 | COMAND control unit | 25G |
| A67 | Inside rearview mirror | 2E |
| A67e1 | Left reading lamp | 1G |
| A67e2 | Right reading lamp | 2G |
| B38/2 | Rain/light sensor with additional functions | 10J |
| B38/2b2 | Light sensor | 10J |
| CAN B | Interior CAN | 17D |
| CAN B | Interior CAN | 19E |
| CAN B | Interior CAN | 23D |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 29F |
| CAN B | Interior CAN | 19F |
| CAN B | Interior CAN | 25E |
| CAN B | Interior CAN | 32E |
| CAN B | Interior CAN | 17G |
| CAN B | Interior CAN | 10G |
| CAN HMI | User interface CAN | 36J |
| CAN HMI | User interface CAN | 31K |
| CAN HMI | User interface CAN | 29H |
| Code U25 | illuminated door sills | 12J |
| E11/1 | Left rear dome lamp | 3H |
| E11/1e2 | Left rear interior lamp | 3H |
| E11/2 | Right rear dome lamp | 3H |
| E11/2e2 | Right rear interior lamp | 3H |
| E15/10 | Left rear vanity mirror unit | 3J |
| E15/10e2 | Left rear vanity mirror dome lamp | 3J |
| E15/11 | Right rear vanity mirror unit | 3J |
| E15/11e2 | Right rear vanity mirror dome lamp | 3K |
| E15/3 | Rear dome lamp | 6J |
| E15/3e3 | Rear interior lamp | 6K |
| E17/15 | Right front footwell lamp | 15K |
| E17/16 | Left front footwell lamp | 15K |
| E17/17 | Right rear footwell lamp | 15K |
| E17/18 | Left rear footwell lamp | 15K |
| E17/3 | Left front door exit and warning lamp | 25B |
| E17/4 | Right front door exit and warning lamp | 25B |
| E17/47 | Left front illuminated door sill molding | 13K |
| E17/48 | Right front illuminated door sill molding | 13K |
| E17/5 | Left rear door exit and warning lamp | 33B |
| E17/51 | Left rear illuminated door sill molding | 13L |
| E17/52 | Right rear illuminated door sill molding | 13L |
| E17/6 | Right rear door exit and warning lamp | 33B |
| E18/4 | Right luggage compartment lamp | 18J |
| E18/5 | Left luggage compartment lamp | 18J |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 18K |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 18L |
| LIN B13 | Roof LIN | 10E |
| LIN B16 | Rain and light sensor LIN | 11H |
| N10/6 | Front SAM control unit | 13E |
| N10/8 | Rear SAM control unit | 20H |
| N2/10 | Supplemental restraint system control unit | 28J |
| N69/1 | Left front door control unit | 28B |
| N69/2 | Right front door control unit | 28B |
| N69/3 | Left rear door control unit | 36A |
| N69/4 | Right rear door control unit | 36A |
| N70 | Overhead control panel control unit | 6E |
| N70e1 | Front dome lamp | 4D |
| N70s3 | Interior lamp automatic function button | 7C |
| N73 | Electronic ignition switch control unit | 33H |
| U1217 | Valid for model series 217 | 5J |
| U1217 | Valid for model series 217 | 22G |
| U1222 | Valid for model series 222 | 2G |
| U1222 | Valid for model series 222 | 12L |
| U1222 | Valid for model series 222 | 32A |
| U1222 | Valid for model series 222 | 22G |
| U2018 | Valid as of model year 2018 | 22J |
| U2060 | Valid up to model year 2018 | 22G |
