Remove/Install Soft Top Compartment Lid - AR77.33-P-1700LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects.	AS91.00-Z-0003-01LCA
	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Close soft top	With soft top open.

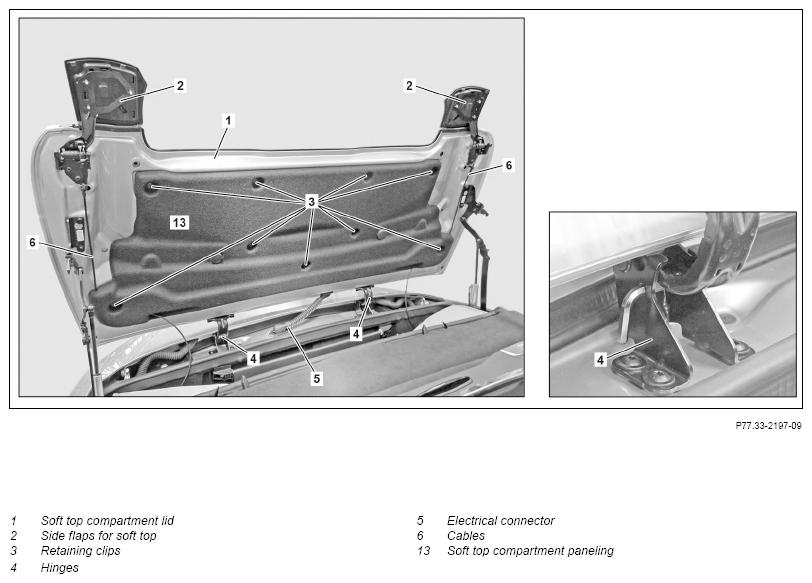

2	Move soft top compartment lid (1) to vertical position
3	Secure soft top compartment lid (1) against falling down	: Always remove suitable tool from holes in hinges (4). Otherwise the soft top compartment (1) can be damaged. : Hydraulic system is unpressurized, carefully lay down soft top compartment (1). Otherwise damage can occur. For this purpose insert suitable tools through holes in hinges (4).
4	Shim soft top bow against lowering
5	Remove retaining clips (3) and remove soft top paneling (13)
6	Remove wires (6) from soft top compartment (1)
7	Remove wires (6) from side flaps for soft top (2)
8	Disconnect electrical central connector (5)
9	Fasten electrical central connector (5) on soft top compartment lid (1) with duct tape

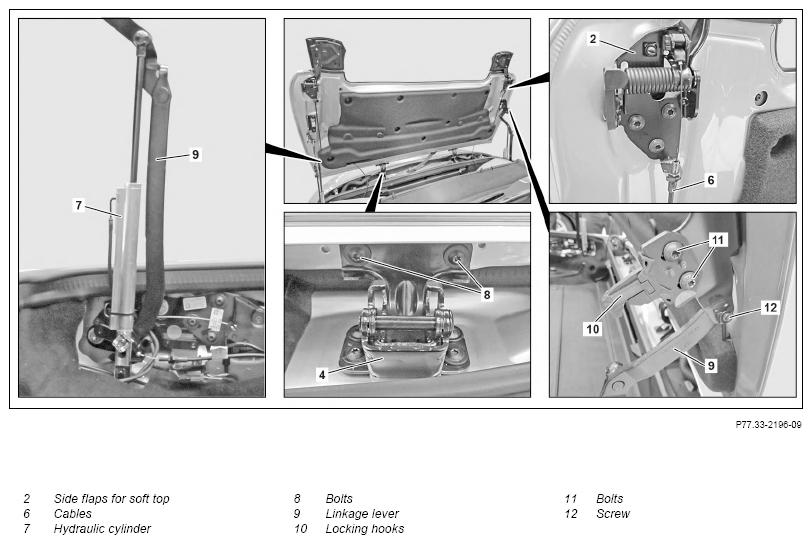

10	Mark positioning of locking hook (10) on soft top compartment lid (1) with pen	When reusing soft top compartment lid (1). : Align locking hook (10) in relation to markings.
11	Unscrew bolts (11) and remove both locking hooks (10)	Bolt, locking hook to lock mounting	*BA77.33-P-1005-02A
12	Unhook hydraulic cylinder (7) from linkage lever (9)	Hydraulic cylinder (7) can be unhooked when under pressure. If required, relieve hydraulic cylinder (7) by momentarily actuating soft top.
13	Unscrew bolt (12) from linkage lever (9)	Bearing pin, lock to lock mounting	*BA77.33-P-1004-02A
14	Pull tools out of holes in hinges (4) and lay down soft top compartment lid (1)
15	Carefully open trunk lid with emergency key	Trunk lid and soft top compartment lid (1) should not collide. Damage can otherwise occur.
16	Mark position of hinges (4) on soft top compartment lid (1) with pen	When reusing soft top compartment lid (1). : Align hinges (4) in relation markings.
17	Unscrew bolts (8) on both hinges (4)	Bolt, hinge to soft top compartment lid	*BA77.33-P-1001-02A
18	Close trunk lid
19	Remove soft top compartment lid (1)	Helper required.
20	Remove side flaps for soft top (2)	When replacing soft top compartment lid (1)	AR77.33-P-1020LCA
21	Disassemble soft top compartment lid (1)	When replacing soft top compartment lid (1).	AR77.33-P-1700-01LCA
		Bolt, stop buffer to soft top compartment lid	*BA77.33-P-1010-02A
		Nut, trim piece to soft top compartment lid	*BA77.33-P-1009-02A
		Bolt, lock mounting to soft top compartment lid	*BA77.33-P-1003-02A
		Mounting wedge	Fig 1
22	Install in the reverse order
23	Adjust soft top compartment lid (1)		AR77.33-P-1705LCA
