Remove/Install Side Flap For Soft Top - AR77.33-P-1020LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Remove/install
1	Close soft top	With soft top open.

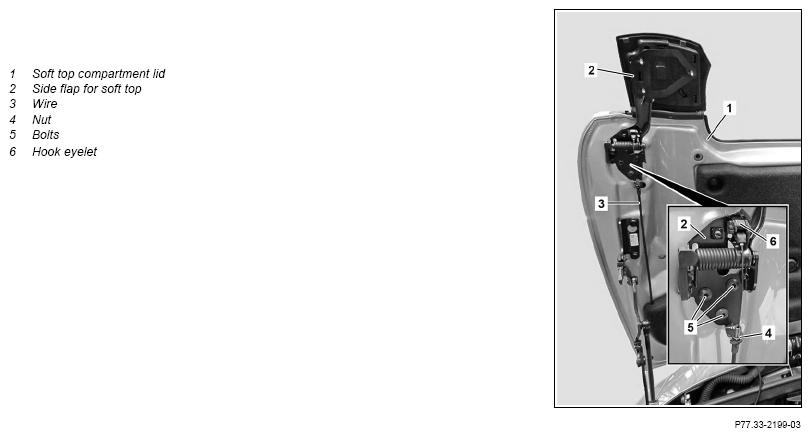

2	Move soft top compartment lid (1) to vertical position

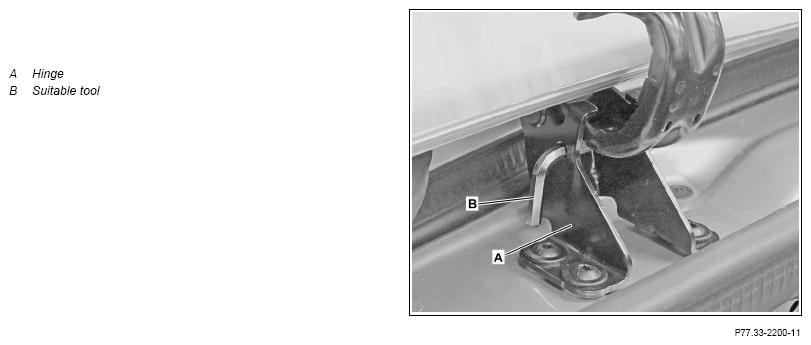

3	Secure soft top compartment lid against falling down	: Hydraulic system looses pressure over time. Carefully lay down soft top compartment. Otherwise damage can occur. : Alway remove suitable tools (B) from holes in hinges (A). Otherwise the soft top compartment (1) can be damaged. For this purpose insert suitable tools (B) into holes in hinges (A).
4	Loosen nut (4) and remove wire (3).
5	Unhook hook eyelet (6) from side flap for soft top (2)
6	Unscrew bolts (5).	Bolt, side flap hinge to soft top compartment lid	*BA77.33-P-1007-02A
7	Remove side flap for soft top (2)
8	Install in the reverse order
9	Adjust side flap for soft top (2)

MECHANICAL SOFT-TOP COMPONENTS

Number	Designation		Model 217.4
BA77.33-P-1007-02A	Bolt, side flap hinge to soft top compartment lid	Nm	10
