Adjust Soft Top Compartment Lid - AR77.33-P-1705LCA

Model 217.4

MODIFICATION NOTES

01.03.2016	"Adjust entire height of soft top compartment lid (1) to basic dimension in relation to rear fender (2) in side area" added.	Operation step 12
27.04.2016	Soft top to soft top compartment lid	Model 217.4	BE60.00-P-1022-01DA

Courtesy of MERCEDES-BENZ USA

	Risk of injury during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects.	AS91.00-Z-0003-01LCA
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Check

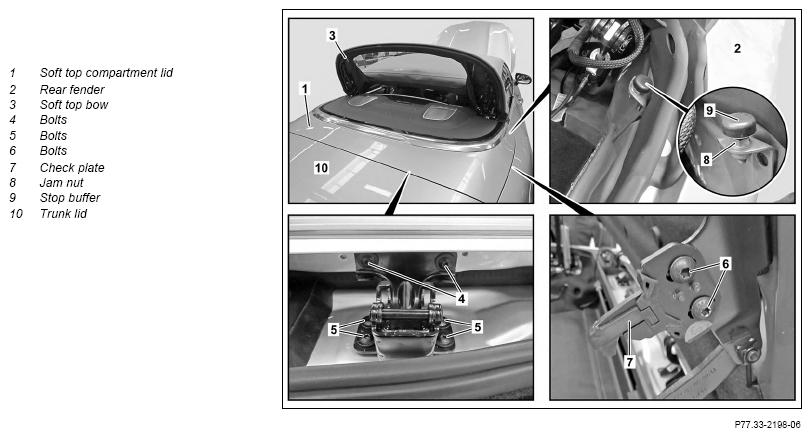

1	Check gap dimensions on trunk lid (10) and adjust if required	trunk lid (10) is reference edge and basic dimension for soft top compartment lid (1).	AR88.50-P-5200LF
		Trunk lid to bumper	*BE60.00-P-1010-01DA
		Trunk lid to bumper	*BE60.00-P-1009-01DA
		Trunk lid to rear fender	*BE60.00-P-1007-01DA
2	Check gap dimensions on soft top compartment lid (1)	Soft top compartment lid to rear fender	*BE60.00-P-1020-01DA
		Soft top to soft top compartment lid	*BE60.00-P-1022-01DA
		Soft top compartment lid to trunk lid	*BE60.00-P-1021-01DA
		Feeler gauge	Fig 1
	Adjust
3	Close soft top	With soft top open.
4	Position soft top bow (3) upright and secure	Soft top compartment lid (1) should remain locked.	AR77.30-P-1030-01LCA
6	Loosen bolts (4) on left and right hinge	If soft top compartment lid (1) is adjusted in lateral direction and height.
7	Adjust soft top compartment lid (1) in lateral direction and height in relation to trunk lid (10) and to rear fender (2)	If necessary. Soft top compartment lid to rear fender	*BE60.00-P-1020-01DA
		Soft top compartment lid to trunk lid	*BE60.00-P-1021-01DA
		Feeler gauge	Fig 1
8	Tighten bolts (4) on left and right hinge	When adjusting in lateral direction and height. Bolt, hinge to soft top compartment lid	*BA77.33-P-1001-02A
9	Loosen bolts (5) on left and right hinge	When soft top compartment lid (1) is adjusted in the longitudinal direction.
10	Adjust soft top compartment lid (1) in longitudinal direction n relation to the trunk lid (10)	If necessary. Soft top compartment lid to trunk lid	*BE60.00-P-1021-01DA
10		Feeler gauge	Fig 1
11	Tighten bolts (5) on left and right hinges	When adjusting in longitudinal. Bolt, soft top compartment lid hinge to body	*BA77.33-P-1002-02A
12	Adjust entire height of soft top compartment lid (1) in relation to rear fender (2) in side area	If necessary.	AR77.33-P-1705-01LCA
		Adjustment dimension for locking plate	*BE77.33-P-1001-02A
		Bolt, locking hook to lock mounting	*BA77.33-P-1005-02A
		Soft top compartment lid to rear fender	*BE60.00-P-1020-01DA
		Feeler gauge	Fig 1
13	Loosen jam nut (8) on stop buffer (9) on left and right	If soft top compartment lid (1) is adjusted in relation to B-pillar.
14	Adjust transition between soft top compartment lid (1) in relation to B-pillar	If necessary. Soft top to soft top compartment lid	*BE60.00-P-1022-01DA
14		Feeler gauge	Fig 1
15	Tighten jam nut (8) on stop buffer (9) on left and right	If soft top compartment lid (1) is adjusted in relation to B-pillar. M6	*BA00.10-P-1002-01A
16	Check adjustment of soft top compartment lid (1) again	If test results deviate ↓ Repeat adjustments
17	Remove retainer against lowering soft top bow
18	Completely close soft top
