Remove/Install Trunk Partition - AR68.50-P-3003LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Partially open soft top	Leave soft top bow and soft top compartment cover in upright position.
2	Cover vehicle in rear area	To prevent scratching the paint during assembly work.

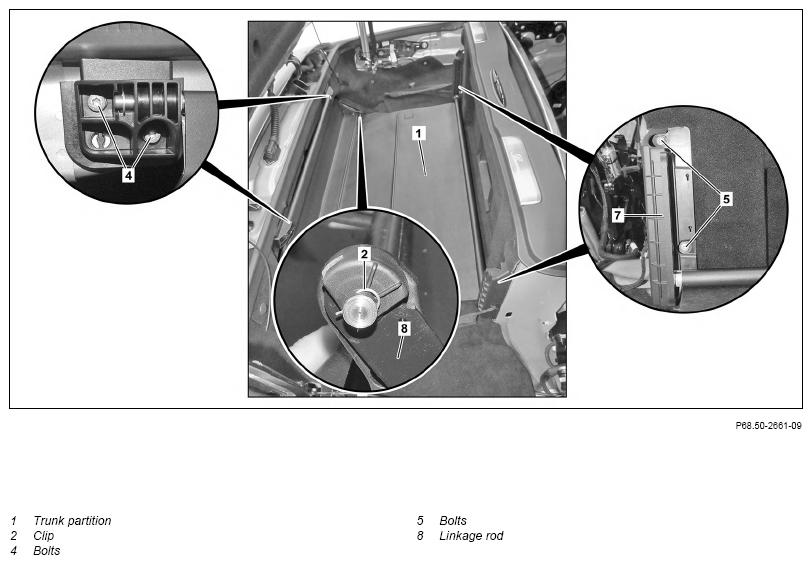

3	Unclip clamps (2) and unhook linkage (8)
4	Remove bolts (5)
5	Unscrew bolts (4) and remove trunk partition upward
6	Install in the reverse order
