Remove/Install Center Stowage Compartment - AR68.10-P-1620LFA
Model 217.4
as of model year 2018
Shown on vehicle with code 899 (Multifunction telephony)
Shown on vehicle with code 899 (Multifunction telephony)
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove multimedia connection unit in front stowage compartment | AR82.60-P-1032LFM | |
| 2 | Remove power soft top switch | AR77.39-P-1000LCA | |
| 3 | Remove rubber mat (2) | ||

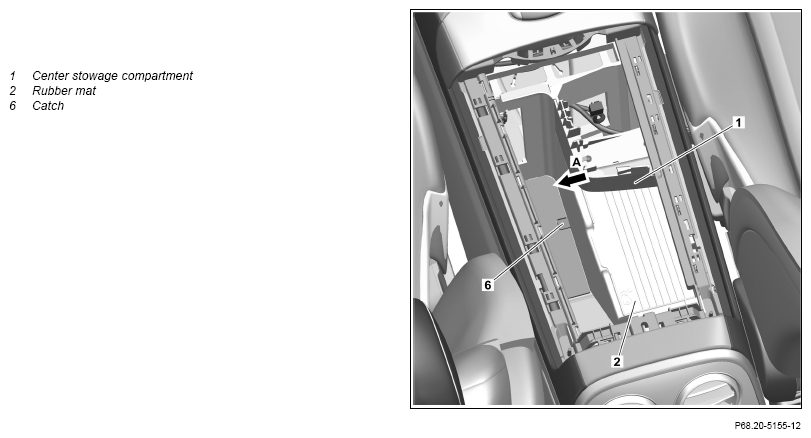

| 4 | Unclip engagement (6) upward and unclip center stowage compartment (1) toward side (arrow A) | Fig 1 | |

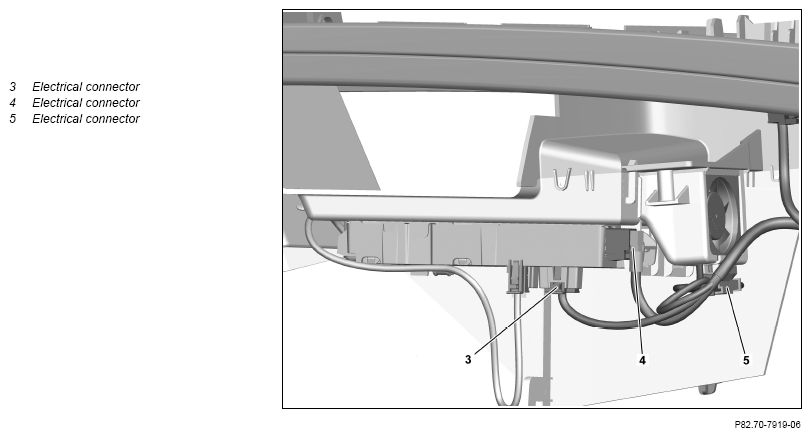

| 5 | Disconnect electrical connectors (3, 4, 5) | Model 217.4 as of model year 2018 with code 899 (Multifunction telephony) | |
| 6 | Remove center stowage compartment (1) in upward direction | ||
| 7 | Install in the reverse order |
