Remove/Install Multimedia Connection Unit In Front Stowage Compartment - AR82.60-P-1032LFM
Model 217, 222
as of model year 2018
Shown on model 222 except code 582 (Air conditioning system in the rear)
Shown on model 222 except code 582 (Air conditioning system in the rear)
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

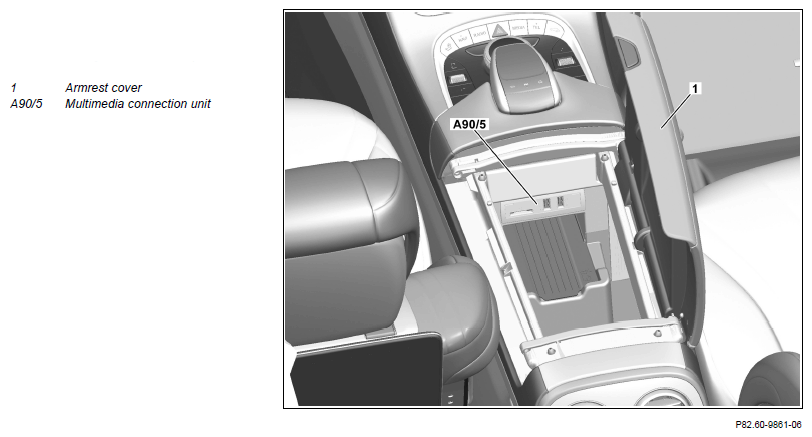

| 1 | Open armrest cover (1) | ||
| 2 | Unclip multimedia connection unit (A90/5) | Fig 1 | |

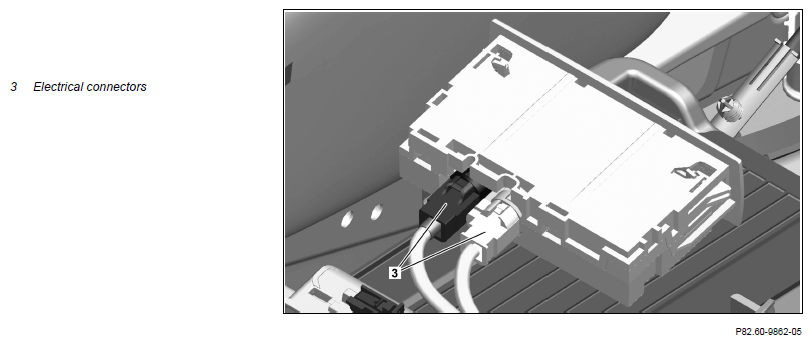

| 3 | Release and disconnect electrical connections (3) | ||
| 4 | Install in the reverse order |
