Remove/Install Soft Top Actuation Switch - AR77.39-P-1000LCA
Model 217.4

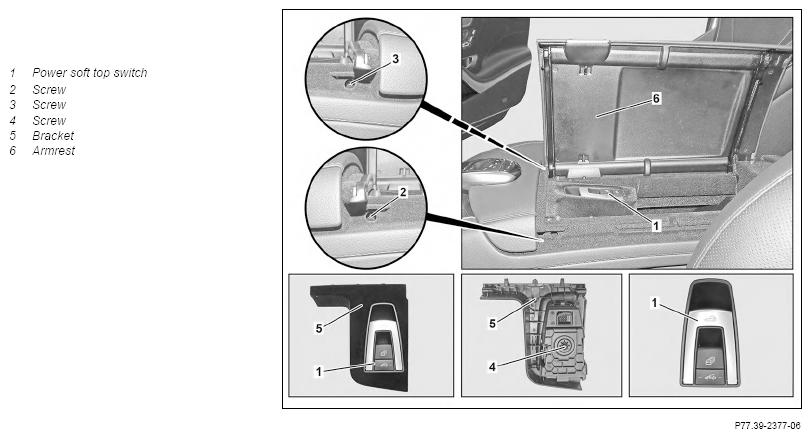

| Remove/install | |||
| 1 | Open armrest (6) on left and unscrew left bolt (2) | ||
| 2 | Open armrest (6) on right and unscrew right bolt (3) | ||
| 3 | Unclip bracket (5) on center console and remove upward | ||
| 4 | Disconnect electrical connector from soft top actuation switch (1) | ||
| 5 | Unscrew bolt (4), unclip soft top actuation switch (1) from bracket (5) and remove | When replacing soft top actuation switch (1). | |
| 6 | Install in the reverse order |
