Remove/Install Backup Camera - AR54.65-P-0030LCA
Model 217.4
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trunk lid cover | AR88.50-P-5000LC | |

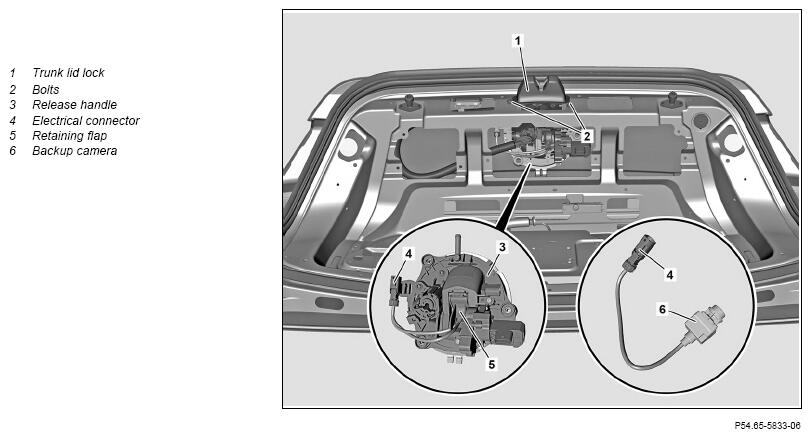

| 2 | Remove screws/bolts (2) and detach trunk lid lock (1) from trunk lid, place to one side and secure to prevent it from falling down | ||
| 3 | Disconnect electrical connector (4) and unclip electrical connector (4) from release handle (3) | ||
| 4 | Unclip retaining flap (5) from release handle (3) and open in upward direction | ||
| 5 | Remove reversing camera (6) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform initial startup of reversing camera (6) | When replacing reversing camera (6) or trunk lid. | |
| AD00.00-P-2000-04B | |||
| 8 | Calibrate reversing camera (6) | When replacing reversing camera (6) or trunk lid. | |
| AD00.00-P-2000-04B |
