Remove/Install Soft Top Compartment Lid 'Locked' Limit Switch - AR77.39-P-3711LCA
Model 217.4
MODIFICATION NOTES
| 03.03.2017 | Method and reference links for emergency actuation revised | Operation steps 1-4 | |
| 06.03.2017 | Operation steps added | Operation steps 6-7 |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Close soft top | With soft top open. If soft top automatic mechanism is inoperative. ↓ Close soft top with emergency actuation |
AR77.30-P-1009LCA |
| 2 | Position soft top compartment lid upright | If soft top automatic mechanism is inoperative. ↓ |
|
| Position soft top compartment lid upright with emergency actuation | AR77.30-P-1008LCA | ||
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 4 | Support soft top bow against lowering | ||

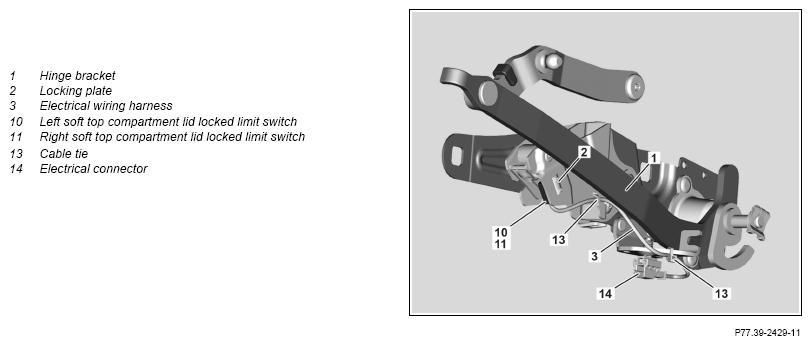

| 5 | Disconnect electrical connector of electrical wiring harness (3) from left or right hinge bracket (1) | ||
| 6 | Remove cable ties (13) | ||
| 7 | Unclip electric coupling (14) | ||

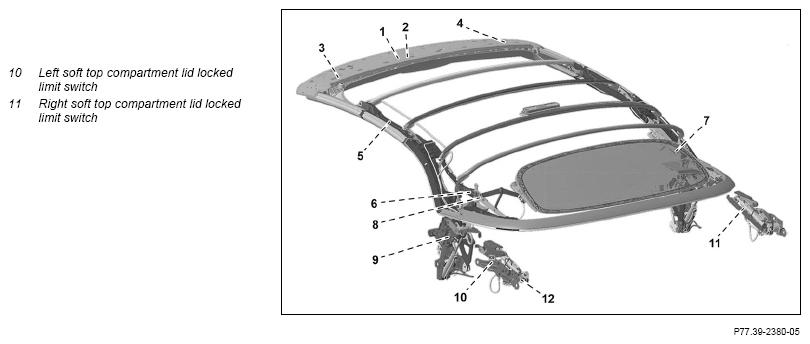

| 8 | Remove lock washer (2) and remove left locked soft top compartment cover limit switch (10) or right locked soft top compartment cover limit switch (11) | ||
| 9 | Install in the reverse order |
