Remove/Install Cable For Soft Top Compartment Lid Lock - AR77.33-P-1710LCA
Model 217.4
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove/install | |||
| 1 | Remove left and right trunk paneling | AR68.30-P-4800LCA | |
| 2 | Remove hydraulic cylinder on soft top compartment lid (4) | AR77.37-P-4175LCA | |
| 3 | Unhook cable (1) on hydraulic cylinder from soft top compartment lid (4) | ||
| 4 | Unclip cable (1) from retaining clips on body and cut open cable tie | ||
| 5 | Loosen jam nuts (2, 3) | *BA77.33-P-1020-02A | |
| 6 | Mark installation position of lock (6) on bracket (10) | Maintain marked installation position Otherwise the gap dimensions of the soft top compartment lid can change. |
|
| 7 | Unscrew bolts (5) and lay down lock (6) with cable (1) | *BA77.33-P-1003-02A | |
| 8 | Unhook nipple (7) from lock (8) | ||
| 9 | Fasten wire for pulling into nipple (7) | ||
| 10 | Back cable (1) back into trunk | It is necessary to guide both cables (1.1) of cables (1) over guide roller (9) Otherwise proper function is not ensured. |
|
| 11 | Remove wire from nipple (7) | ||
| 12 | Install in the reverse order | ||
| 13 | Adjust cable (1) for soft top compartment lid | AR77.33-P-1710-01LCA | |
| *BA77.33-P-1020-02A | |||
| Adjustment dimension, nut for cable | *BE77.33-P-1002-02A | ||

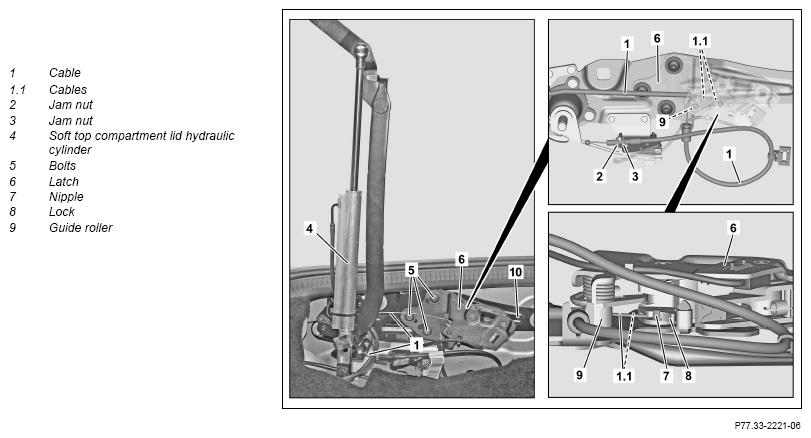

| Fig 1 | |||
| Check | |||
| 14 | Adjust gap dimension on soft top compartment lid if adjust if required | AR77.33-P-1705LCA |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 217.4 | |
|---|---|---|---|
| BE77.33-P-1002-02A | Adjustment dimension, nut for cable | mm | 8 (±0, 5) |
MECHANICAL SOFT-TOP COMPONENTS
| Number | Designation | Model 217.4 | |
|---|---|---|---|
| BA77.33-P-1003-02A | Bolt, lock mounting to soft top compartment lid | Nm | 10 |
MECHANICAL SOFT-TOP COMPONENTS
| Number | Designation | Model 217.4 | |
|---|---|---|---|
| BA77.33-P-1020-02A | Jam nut, cable for emergency release to bracket/hinge | Nm | 6 |
