Remove/Install Side PRE-SAFE(R) Pulse Gas Generator In Backrest, Replace If Necessary - AR91.60-P-0702S
Model 223
with code 292 (PRE-SAFE® Impulse Side)

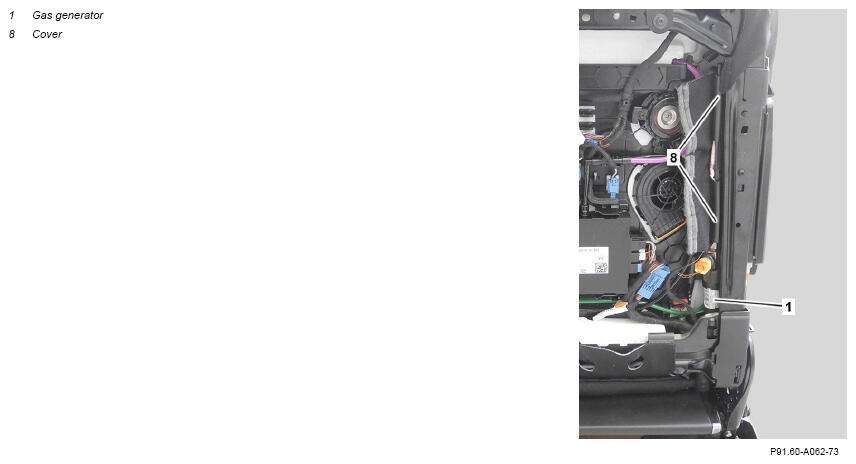

Fig 1: Side Pre-Safe(R) Pulse Gas Generator In Backrest Components Location - Model 223 With Code 292
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove seat backrest trim. | Model 223 with code 292 (PRE-SAFE® Impulse Side) with code 735 (Additional scope of trim elements) |
AR91.10-P-1912S |
| Model 223 with code 292 (PRE-SAFE® Impulse Side) except code 735 (Additional scope of trim elements) |
AR91.10-P-1912SA | ||
| 2 | Disconnect ground line of battery of 12 V on-board electrical system. | AR54.10-P-0051S | |
| 3 | Unhook outer cover (8) of seat backrest in area of gas generator (1) until the gas generator (1) is accessible. | ||
| 4 | Disconnect electrical connection (2). | ||

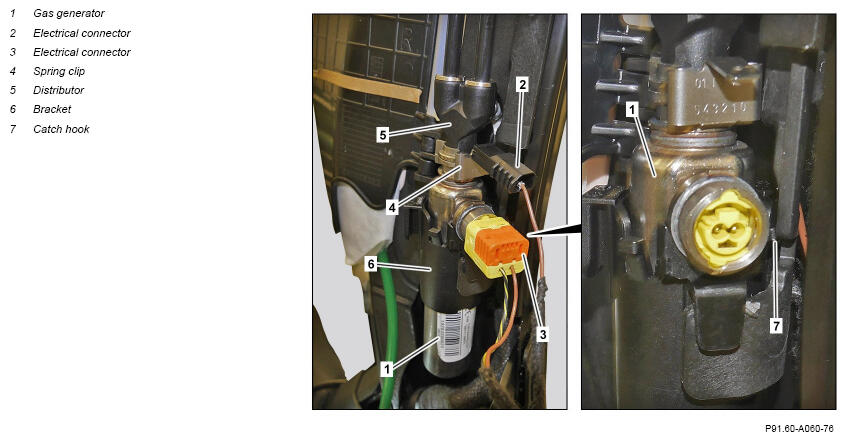

| 5 | Release and disconnect electrical connection (3). | Fig 2 | |
| 6 | Release catch hook (7). | ||
| 7 | Unhook holder (6) with gas generator (1) upwards from seat backrest shell. | ||
| 8 | Detach spring clip (4) from gas generator (1). | Ensure that the spring clip (4) is seated correctly. Otherwise, a malfunction of the PRE-SAFE® pulse side may occur. |
|
| 9 | Pull distributor (5) with pressure lines out of gas generator (1) and remove gas generator (1) with holder. | Ensure that the distributor (5) is seated correctly. Otherwise, a malfunction of the side PRE-SAFE® Impulse function may occur. |
|
| 10 | Install in the reverse order. | ||
| Check | |||
| 11 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR |
