Remove/Install Front Seat Belt Buckle - AR91.40-P-1515SA

Model 223

with code 562 (Driver seat belt buckle with integrated tensioning function)

Courtesy of MERCEDES-BENZ USA

	Risk of injury during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°c or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A

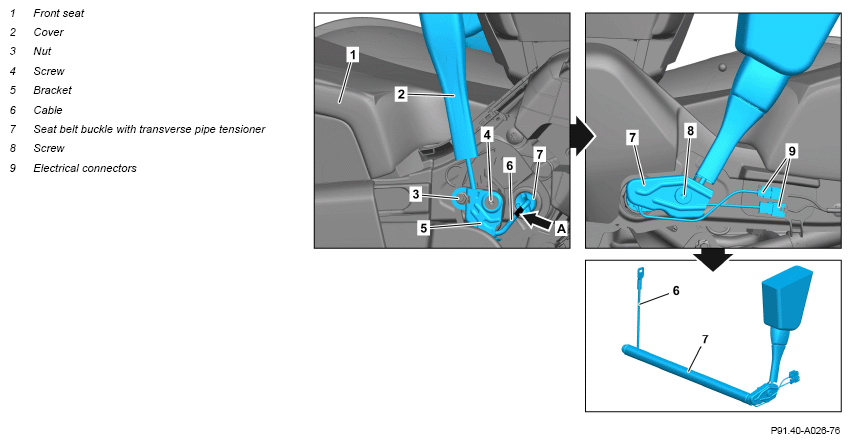

	Remove/install
1	Remove respective front seat (1).		AR91.10-P-1000S
2	Remove cover (2).	Feed wire cable (6) through the cover (2).
3	Remove nut (3).	Replace nut (3). Nut for guide (belt buckle/belt anchor fitting tensioner)	*BA91.40-P-1003-01T
4	Unscrew bolt (4).	Bolt for guide (belt buckle/belt anchor fitting tensioner)	*BA91.40-P-1002-01T
5	Remove holder (5) and unhook wire cable (6) from guide.	Ensure that the wire cable (6) is seated correctly in the guide.
6	Remove screw (8).	Clean screw (8) and associated threaded hole of thread locking adhesive residue. Moisten screw (8) with screw locking varnish, Loctite 241.
		Thread locking adhesive, Loctite 241	*BR00.45-Z-1001-02A
		Bolt at belt buckle (belt buckle/belt anchor fitting tensioner)	*BA91.40-P-1001-01T
7	Unclip electrical connectors (9).	Dismantling tool	Fig 1
8	Disconnect electrical connections (9).
9	Pull seat belt buckle with transverse pipe tensioner (7) out of transverse pipe of seat adjustment unit.	If the triggering mark (arrow A) on the wire cable (6) is not visible, the seat belt buckle with transverse pipe tensioner (7) must be replaced.
10	Install in the reverse order
	Check
11	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.
			AD00.00-P-2000-06FR

SEAT BELTS AND EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 223 with code Z07 (B7 armoring on special protection version)	Model 223 except code Z07 (B7 armoring on special protection version)
BA91.40-P-1001-01T	Bolt at belt buckle (belt buckle/belt anchor fitting tensioner)	Nm	35	35

SEAT BELTS AND EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 223 with code Z07 (B7 armoring on special protection version)	Model 223 except code Z07 (B7 armoring on special protection version)
BA91.40-P-1002-01T	Bolt for guide (belt buckle/belt anchor fitting tensioner)	Nm	24	24

SEAT BELTS AND EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 223 with code Z07 (B7 armoring on special protection version)	Model 223 except code Z07 (B7 armoring on special protection version)
BA91.40-P-1003-01T	Nut for guide (belt buckle/belt anchor fitting tensioner)	Nm	10	10

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-02A	Thread locking adhesive, Loctite 241	A 002 989 94 71
