Remove/Install Steering Wheel Electronics - AR82.90-P-0100WTF

Model 206, 236, 294, 295

with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT))

except code L5C (Supersport steering wheel - leather deep-embossed)

Model 223

with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT))

except code L2B (Leather luxury steering wheel)

except code L2D (Luxury leather steering wheel with trim element)

except code L5C (Supersport steering wheel - leather deep-embossed)

except code L5D (Supersport steering wheel - leather with trim element)

Model 254

with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT))

except code L3E (Sport steering wheel - smooth split leather)

except code L5C (Supersport steering wheel - leather deep-embossed)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove driver's airbag from steering wheel.	Model 294, 295 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L5C (Supersport steering wheel - leather deep-embossed)	AR91.60-P-0663EQS
		Model 223 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L2B (Leather luxury steering wheel) except code L2D (Luxury leather steering wheel with trim element) except code L5C (Supersport steering wheel - leather deep-embossed) except code L5D (Supersport steering wheel - leather with trim element)	AR91.60-P-0663S
		Model 206, 236 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L5C (Supersport steering wheel - leather deep-embossed) Model 254 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L3E (Sport steering wheel - smooth split leather) except code L5C (Supersport steering wheel - leather deep-embossed)	AR91.60-P-0663WT

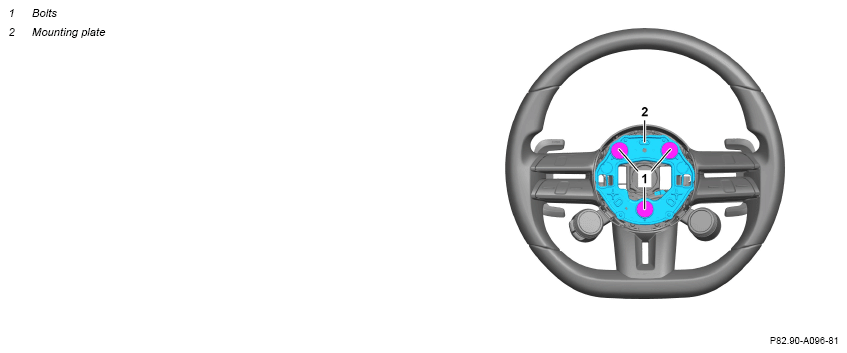

2	Remove screws (1).
3	Remove mounting plate (2) then release and disconnect electrical connector.
4	Remove washers of screws (1).	If washers are installed.
5	Release and disconnect electrical connector from steering column tube module control unit.

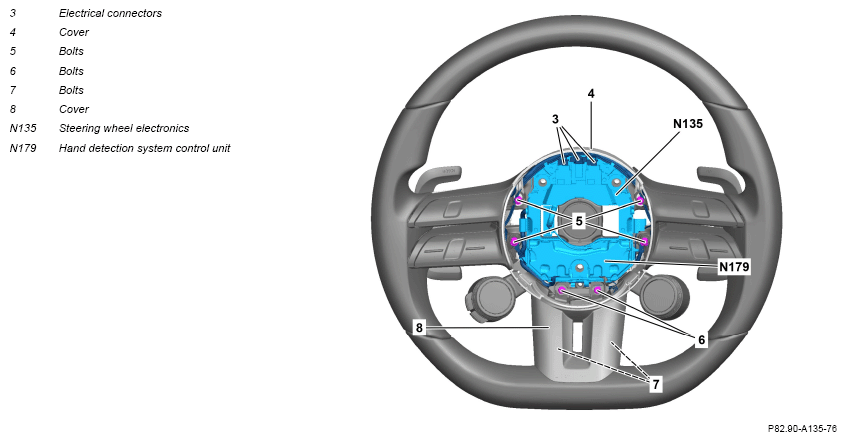

6	Unscrew screws (6, 7) and remove cover (8).	Dismantling tool	Fig 1
7	Remove bolts (5).
8	Unclip hand detection system control unit (N179) and release and disconnect electrical connectors.	Model 206, 236, 294, 295 with code 266 (DISTRONIC PLUS with Cross- Traffic Assist (DTR+Q)) with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L5C (Supersport steering wheel - leather deep-embossed) Model 223 with code 266 (DISTRONIC PLUS with Cross-Traffic Assist (DTR+Q)) with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L2B (Leather luxury steering wheel) except code L2D (Luxury leather steering wheel with trim element) except code L5C (Supersport steering wheel - leather deep-embossed) except code L5D (Supersport steering wheel - leather with trim element) Model 254 with code 266 (DISTRONIC PLUS with Cross-Traffic Assist (DTR+Q)) with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L3E (Sport steering wheel - smooth split leather) except code L5C (Supersport steering wheel - leather deep-embossed)
		Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.	AR82.90-P-0201WTF
9	Remove cover (4) with button group 1 for lower multifunction steering wheel, button group 2 for lower multifunction steering wheel, and button group electric controller unit for lower multifunction steering wheel.	Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.
10	Release and disconnect electrical connectors (3) of steering wheel electronics (N135), and remove steering wheel electronics (N135).	Observe installation position of washers and steering wheel electronics (N135).
	Install
11	Connect and lock electrical connectors (3) of steering wheel electronics (N135), and install steering wheel electronics (N135).	Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. Ensure that electrical connectors (3) engage correctly. Ensure that routing of lines is correct.
12	Install cover (4) with button group 1 for lower multifunction steering wheel, button group Tastengruppe2 for lower multifunction steering wheel, and button group electric controller unit for lower multifunction steering wheel.	Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.
13	Connect and lock electrical connectors at hand detection system control unit (N179), and install hand detection system control unit (N179).	Model 206, 236, 294, 295 with code 266 (DISTRONIC PLUS with Cross-Traffic Assist (DTR+Q)) with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L5C (Supersport steering wheel - leather deep-embossed) Model 223 with code 266 (DISTRONIC PLUS with Cross-Traffic Assist (DTR+Q)) with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L2B (Leather luxury steering wheel) except code L2D (Luxury leather steering wheel with trim element) except code L5C (Supersport steering wheel - leather deep-embossed) except code L5D (Supersport steering wheel - leather with trim element) Model 254 with code 266 (DISTRONIC PLUS with Cross-Traffic Assist (DTR+Q)) with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L3E (Sport steering wheel - smooth split leather) except code L5C (Supersport steering wheel - leather deep-embossed)
		Ensure that the electrical connectors are engaged correctly.	AR82.90-P-0201WTF
14	Screw in screws (5).	Ensure that routing of lines is correct. Model 254 Bolt, front cover to steering wheel	*BA46.10-P-1003-02C
		Model 206, 223, 236, 294, 295 Screw, front cover to steering wheel	*BA46.10-P-1004-02J
15	Install cover (8) and screw in screws (6, 7)	Model 254 Bolt, front cover to steering wheel	*BA46.10-P-1003-02C
		Model 206, 223, 236, 294, 295 Screw, front cover to steering wheel	*BA46.10-P-1004-02J
16	Connect and lock electrical connector at steering column tube module control unit.	Ensure correct engagement of electrical connector.
17	Check line routing of electrical wiring harness in steering wheel.		AR82.90-P-0101-01FRB
18	Install washers of screws (1).	If washers are installed.
19	Connect electrical connector and install mounting plate (2).	Ensure that the electrical connectors are engaged correctly.
20	Screw in screws (1).	Model 254 Screw, mounting plate/contact plate to steering wheel	*BA46.10-P-1002-02C
		Model 206, 223, 236, 294, 295 Screw, mounting plate/contact plate to steering wheel	*BA46.10-P-1002-02J
21	Install driver's airbag at steering wheel.	Model 294, 295 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L5C (Supersport steering wheel - leather deep-embossed)	AR91.60-P-0663EQS
		Model 223 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L2B (Leather luxury steering wheel) except code L2D (Luxury leather steering wheel with trim element) except code L5C (Supersport steering wheel - leather deep-embossed) except code L5D (Supersport steering wheel - leather with trim element)	AR91.60-P-0663S
		Model 206, 236 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L5C (Supersport steering wheel - leather deep-embossed) Model 254 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L3E (Sport steering wheel - smooth split leather) except code L5C (Supersport steering wheel - leather deep-embossed)	AR91.60-P-0663WT
22	Connect vehicle diagnosis system and perform commissioning.	When replacing steering wheel electronics (N135).
			AD00.00-P-2000-06FR
23	Perform function test of steering wheel buttons.

STEERING WHEEL

Number	Designation		Model 254
BA46.10-P-1002-02C	Screw, mounting plate/contact plate to steering wheel	Nm	7

STEERING WHEEL

Number	Designation		Model 206, 214	Model 223
BA46.10-P-1002-02J	Screw, mounting plate/contact plate to steering wheel	Nm	7	8

STEERING WHEEL

Number	Designation		Model 236	Model 294
BA46.10-P-1002-02J	Screw, mounting plate/contact plate to steering wheel	Nm	8	8

STEERING WHEEL

Number	Designation		Model 295
BA46.10-P-1002-02J	Screw, mounting plate/contact plate to steering wheel	Nm	8

STEERING WHEEL

Number	Designation		Model 254
BA46.10-P-1003-02C	Bolt, front cover to steering wheel	Nm	3

STEERING WHEEL

Number	Designation		Model 206, 214	Model 223
BA46.10-P-1004-02J	Screw, front cover to steering wheel	Nm	3	3

STEERING WHEEL

Number	Designation		Model 236	Model 294
BA46.10-P-1004-02J	Screw, front cover to steering wheel	Nm	3	3

STEERING WHEEL

Number	Designation		Model 295
BA46.10-P-1004-02J	Screw, front cover to steering wheel	Nm	3

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)
