Remove/Install Center Airbag - AR91.60-P-0666S
Model 223
with code 325 (Center airbag)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove seat backrest trim. | Model 223 with code 325 (Center airbag) with code 735 (Additional scope of trim elements) |
AR91.10-P-1912S |
| Model 223 with code 325 (Center airbag) except code 735 (Additional scope of trim elements) |
AR91.10-P-1912SA | ||
| 2 | Disconnect ground line of battery of 12 V on-board electrical system. | AR54.10-P-0051S | |

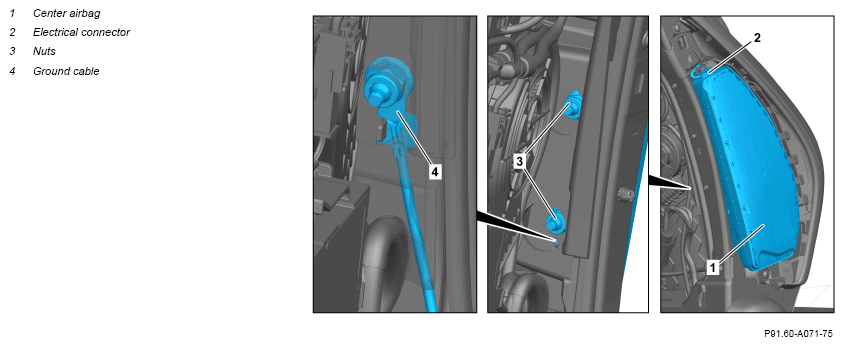

| 3 | Release and disconnect electrical connector (2). | Fig 1 | |
| 4 | Remove nuts (3) and remove ground line (4). | *BA91.60-P-1010-01I | |
| 5 | Remove center airbag (1). | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR |
AIRBAG
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA91.60-P-1010-01I | Nut, center airbag/side airbag to seat backrest frame | Nm | 6 |
