Remove/Install Front Passenger Bench Seat - AR91.10-S-1035E
Model 447.6/7 With Code S23 (Co-driver's seat double seat)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect ground line from battery. | AR54.10-S-0003E | |
| 2 | Remove seat cushion padding from front passenger bench seat (3). | AR91.10-S-5036E | |

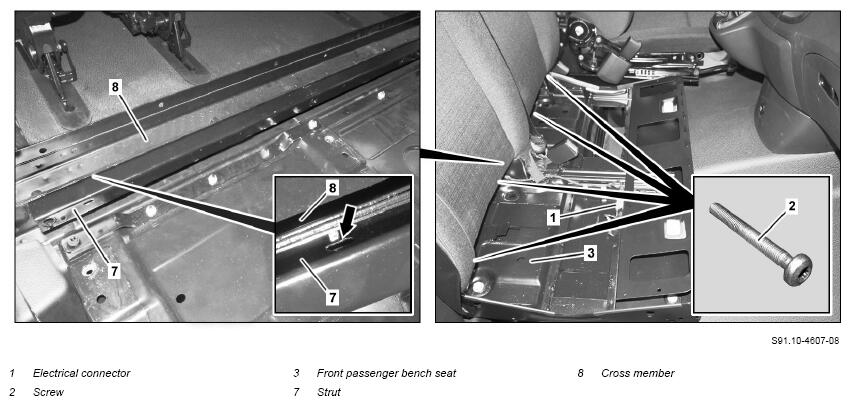

| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Release and disconnect electrical connector of seat heating. | Model 447.6/7 with code H15 (Seat heater for front passenger) with code S23 (Co-driver's seat double seat) |
|
| 5 | Remove screw/bolts (2). | *BA91.10-Z-1008-01KOJ | |

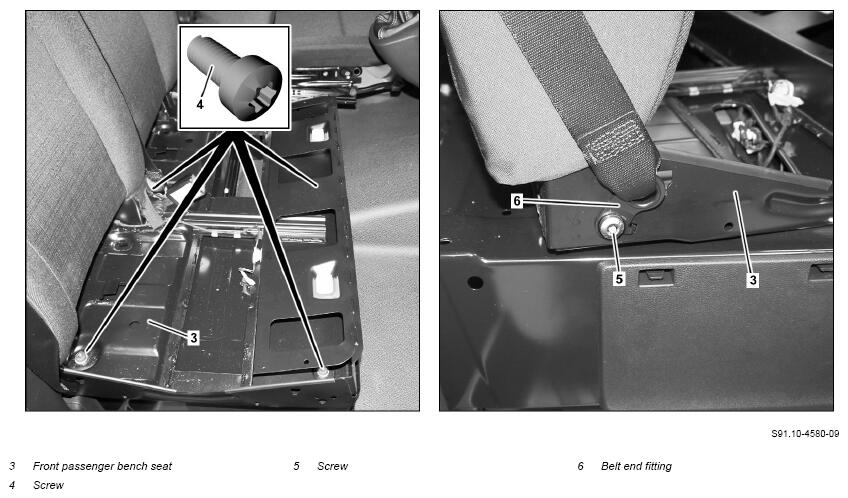

| 6 | Remove screws/bolts (4). | *BA91.10-Z-1007-01KOJ | |
| 7 | Move front passenger bench seat (3) forward far enough until screw (5) is accessible. | ||
| 8 | Unscrew screw (5) and remove seat belt end fitting (6) from front passenger bench seat (3). | *BA91.40-Z-1015-01KOM | |
| 9 | Expose and disconnect electrical wiring harness of seat belt warning system on front passenger bench seat (3). | Model 447.6/7 with code J55 (Seat belt warning system for front passenger seat) with code S23 (Co-driver's seat double seat) | |
| 10 | Expose and disconnect electrical wiring harness of seat heating on front passenger bench seat (3). | Model 447.6/7 with code H15 (Seat heater for front passenger) with code S23 (Co-driver's seat double seat) |
|
| 11 | Remove front passenger bench seat (3) from vehicle through door cutout on front passenger side. | ||
| 12 | Install in the reverse order. | ||
| Check | |||
| 13 | Perform function test on seat heating. | Model 447.6/7 with code H15 (Seat heater for front passenger) with code S23 (Co-driver's seat double seat) | |
| 14 | Perform function test on seat belt warning system. | Model 447.6/7 with code J55 (Seat belt warning system for front passenger seat) with code S23 (Co-driver's seat double seat) |
FRONT SEATS
| Number | Designation | Model 447 | |
|---|---|---|---|
| BA91.10-Z-1007-01KOJ | Screw/bolt, front passenger bench seat to seat console | Nm | 50 |
FRONT SEATS
| Number | Designation | Model 447 | |
|---|---|---|---|
| BA91.10-Z-1008-01KOJ | Screw/bolt, front passenger bench seat to cross member | Nm | 50 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 447 | |
|---|---|---|---|
| BA91.40-Z-1015-01KOM | Screw/bolt, belt end fitting to front passenger bench seat | Nm | 35 |
