Remove/Install Airbag Unit On Steering Wheel - AR91.60-S-0660E
Model 447, 448
except code XM7 (MOPF II)
MODIFICATION NOTES
| 06.02.2024 | Note references updated | Note module | |
| 06.02.2024 | Method extended. | Operation step 7 |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||

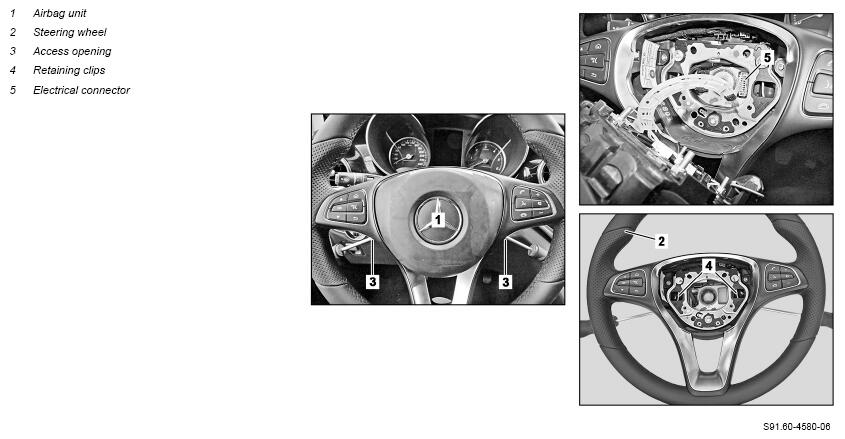

| 1 | Turn steering wheel (2) to center position. | ||
| 2 | Detach ground line of on-board electrical system battery. | AR54.10-S-0003E | |

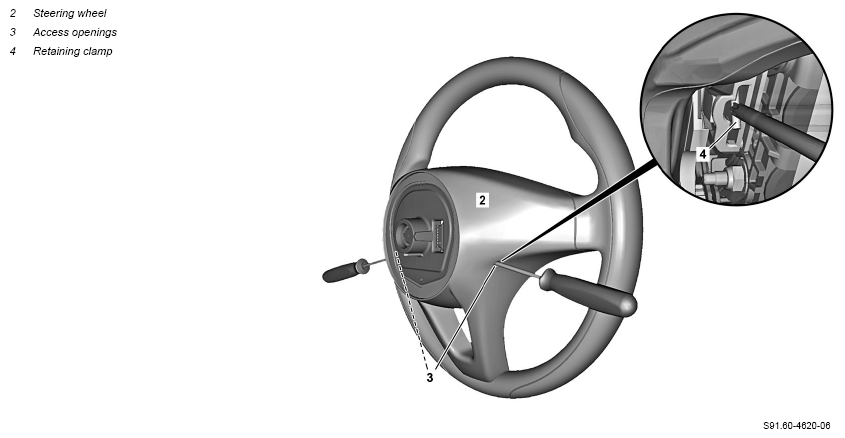

| 3 | Punch through access openings (3) on steering wheel (2) using a hexalobular external profile screwdriver T20. | When removing the airbag unit (1) for the first time. | |

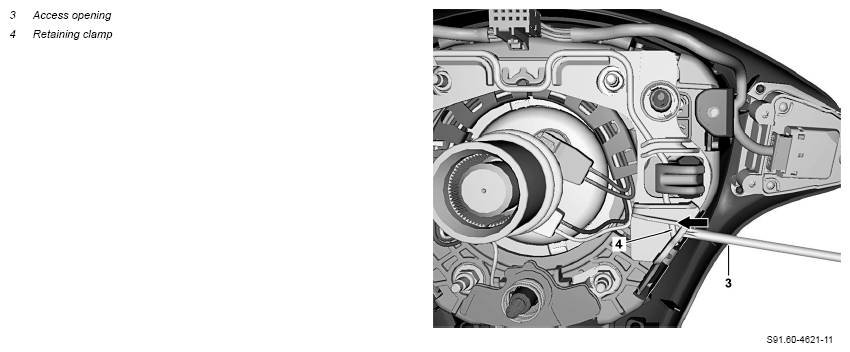

| 4 | Using hexalobular external profile screwdriver T20, release retaining clamps (4) on both sides through access openings (3) and remove airbag unit (1) from steering wheel (2). | ||
| 5 | Disconnect electrical connector (5). | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | When replacing airbag unit (1). | |
| AD00.00-S-2000-04E | |||
| 8 | Perform function test of horns. |
