Remove/Install Control And Operating Unit - AR83.40-S-6350E
Model 447.6/7, 448.7 Except Code XM7 (MOPF II)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove center dashboard cover | AR68.10-S-3430E | |

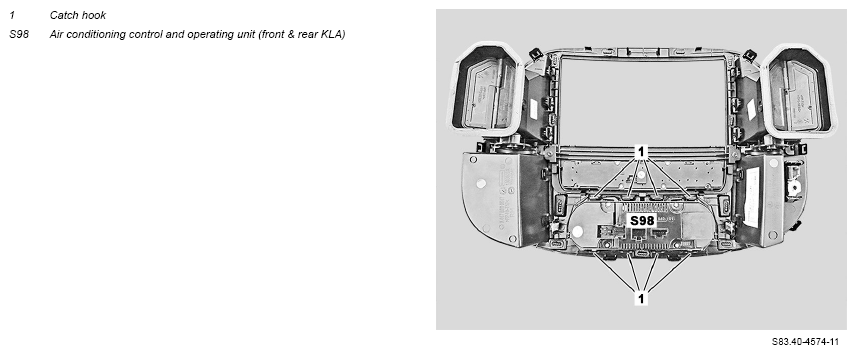

| 2 | Release catch hooks (1) and remove air conditioning control and operating unit (front & rear A/C) (S98) | ||
| 3 | Install in the reverse order | ||
| 4 | Connect diagnostic system and carry out initial startup of A/C control and operating unit (front & rear A/C) (S98) | When replacing air conditioning control and operating unit (front & rear A/C) (S98). | |
| AD00.00-S-2000-04E | |||
| Check | |||
| 5 | Carry out function test of A/C control and operating unit (front & rear A/C) (S98) |
