Remove/Install Additional Battery For Park Pawl Emergency Shift Mode - AR54.10-S-0120E
Model 447 With Engine 780
Except Code G42 (7G-TRONIC PLUS)
Except Code G43 (9G-TRONIC)
Model 447
With Code G42 (7G-TRONIC PLUS)
Except Code MJ8 (ECO start/stop function)
Model 447
With Code G43 (9G-TRONIC)
Except Code MJ8 (ECO start/stop function)
Shown on model 447 Except Code S23 (Two-seater front passenger seat) Except Code D50 (Full-width partition wall) Except Code D51 (Full-width partition wall with 1 window)

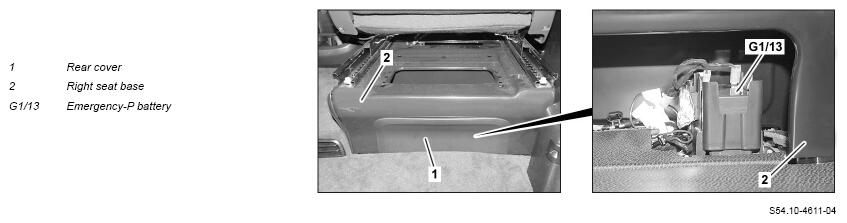

Fig 1: Additional Battery For Park Pawl Emergency Shift Mode Components Location - Model 447 With Code G42, G43 Except Code MJ8 (Shown Except Code S23, D50, D51)
Shown on model 447 With Code S23 (Two-seater front passenger seat) Except Code D50 (Full-width partition wall) Except Code D51 (Full-width partition wall with 1 window)

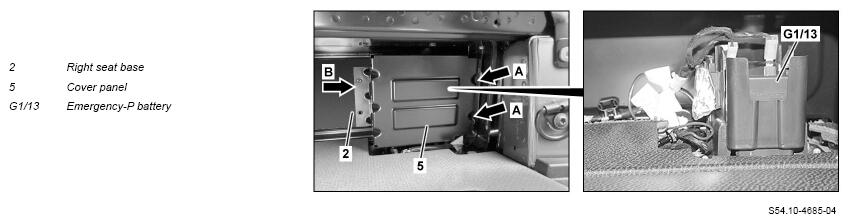

Fig 2: Additional Battery For Park Pawl Emergency Shift Mode Components Location - Model 447 With Code G42, G43 Except Code MJ8 (Shown With Code S23 Except D50, D51)
Shown on model 447 Except Code S23 (Two-seater front passenger seat)
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Move right front seat all way forward | Model 447 except code D50 (Full-width partition wall) except code D51 (Full-width partition wall with 1 window) except code S23 (Two-seater front passenger seat) | |
| 3.1 | Remove rear cover (1) from right seat base (2) | Model 447 except code D50 (Full-width partition wall) except code D51 (Full-width partition wall with 1 window) except code S23 (Two-seater front passenger seat) | |
| 3.2 | Unscrew nuts (arrows A), loosen Velcro fastener (arrow B) and detach cover panel (5) from right seat base (2) | Model 447 with code D50 (Full-width partition wall), model 447 with code D51 (Full-width partition wall with 1 window), model 447 with code S23 (Two-seater front passenger seat) | |

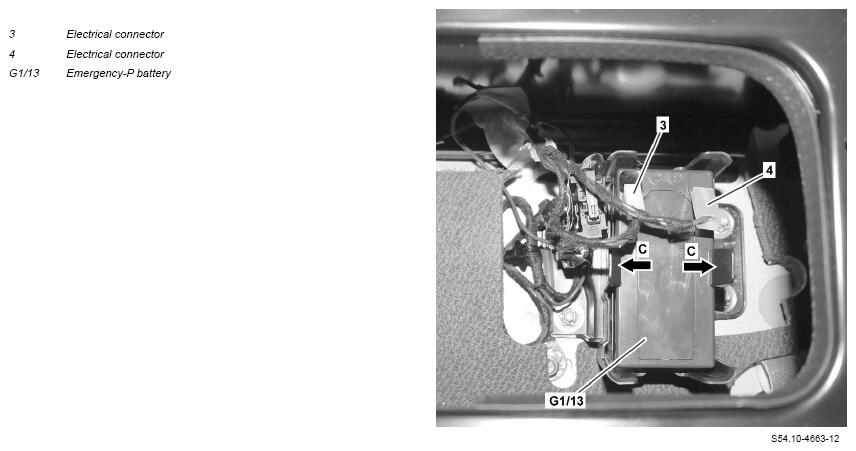

| 4 | Detach electrical connector (3) from ground line | ||
| 5 | Detach electrical connector (4) from positive line | ||
| 6 | Unlatch catch hook (arrows C) and remove Emergency-P battery (G1/13) from battery carrier | ||
| 7 | Install in the reverse order |
