Replace HERMES Control Unit (Code: VS2SIMKOW, Acc. No.: 54 963 42) - SM82.95-S-0028A

Model 447.603/605/703 13 as of 153001 up to 913143 with code JH3 (Communication module (LTE) for digital services) with code ZU8 (National version for USA)

MODIFICATION NOTES

16.05.2024 This document replaces document SM82.95-S-0025A.
OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category Op. no. Operation text Time Acc. no. Code
P 02 4762 Operations: Connect/disconnect vehicle diagnosis system (XENTRY Diagnosis) - 54 963 42 VS2SIMKOW
P 02 5058 Operations: Connect/disconnect starter battery charger (XENTRY Diagnosis connected) - 54 963 42 VS2SIMKOW
P 12 2148 Operations: Replace HERMES control unit (with XENTRY Diagnosis connected) - 54 963 42 VS2SIMKOW

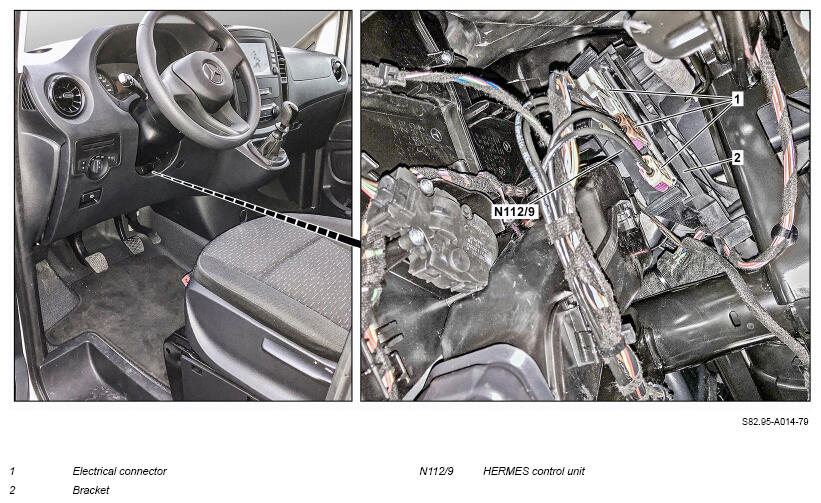

G16504382Courtesy of MERCEDES-BENZ USA

Shown on model 447.6/7

G16503358Courtesy of MERCEDES-BENZ USA

Shown on model 447.6/7

Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on carrying out repair work in the vehicle interior   AH68.00-D-0001-01KOS
  Notes on programming control units   AH54.21-P-0001-03Z
  Notes on SCN coding of control units   AH54.21-P-0004-01X
INSPECT Check
1 Check if vehicle is affected by measure. IMPORTANT For authorized Mercedes-Benz service partners, only the entry in the "Extended VEGA Application" (EVA) system, in the "Current" tab is decisive. There is no need to also check the affected vehicles in the workshop information system (WIS) or vehicle list.
  Installing
2 Install the 12 V charger.
REFER TO TESTING & REPAIR   NOTES A sufficient power supply for the on-board electrical system battery must be guaranteed throughout the entire work procedure.
Otherwise any undervoltage that occurs may damage the control units
IMPORTANT Follow the operating instructions for the 12 V charger
IMPORTANT Use the 12 V charger to ensure an adequate voltage (min. 12.5 V) for the on-board electrical system battery.
AR54.10-S-1127E
3 Install vehicle diagnosis system. If diagnostic system is not yet attached.
REFER TO SELF-DIAGNOSTIC SYSTEMS   IMPORTANT Further information about "Retail Data Storage" is available in the XENTRY Portal at the following path:
XENTRY Portal →
Diagnosis & Telematics →
XENTRY Update Service & Retail Data Storage →
Overview
IMPORTANT Always use the latest XENTRY Diagnosis software release with all available add-ons
IMPORTANT It is absolutely essential to precisely follow the operation steps as described in the vehicle diagnosis system
If XENTRY Diagnosis is already connected to vehicle,
→
continue with operation step 4.
AD00.00-S-2000-04E
  Commissioning of control unit
4 Perform commissioning of HERMES control unit (N112/9) using vehicle diagnosis system.
REFER TO TESTING & REPAIR Programming of control units IMPORTANT To do this, select the following menu items:
Quick test view →
N112/9 'Telematics services' (HERMES) communication module (code: JH3) →
Adaptations →
Commissioning →
Control unit replacement with initial startup of new control unit
IMPORTANT It is absolutely essential to precisely follow the operation steps as described in the vehicle diagnosis system.
AR54.21-S-0014E
REMOVING Remove
5 Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
6 Remove left cover under the dashboard.
REFER TO TESTING & REPAIR   Model 447.6/7 with code LC7 (Front footwell illumination) with code ZU8 (USA national version) AR68.10-S-1500E
7 Unhook air duct from instrument panel. If installed.
8 Disconnect electrical connectors (1). IMPORTANT To do so, release U-shaped striker and detach electrical connectors (1).
9 Release front and rear lock on holder (2) and take HERMES control unit (N112/9) out to one side. IMPORTANT Dispose of removed HERMES control unit (N112/9) properly. Observe the applicable legal requirements and specifications of the relevant country.
INSTALLING Install
10 Install new HERMES control unit (N112/9) on holder (2) and lock. IMPORTANTThe new HERMES control unit (N112/9) is commissioned in operation step 14.
11 Connect electrical connectors (1). IMPORTANT To do so, lock U-shaped striker and pull in electrical connectors (1).
12 Install air duct on instrument panel. If installed.
13 Install left cover below the instrument panel.
REFER TO TESTING & REPAIR   Model 447.6/7 with code LC7 (Front footwell illumination) with code ZU8 (USA national version) AR68.10-S-1500E
  Commissioning of control unit
14 Perform commissioning of HERMES control unit (N112/9) using vehicle diagnosis system.
REFER TO TESTING & REPAIR   IMPORTANT To do this, select the following menu items:
Quick test view →
N112/9 'Telematics services' (HERMES) communication module (code: JH3) →
Adaptations →
Commissioning →
Control unit replacement with initial startup of new control unit
IMPORTANT It is absolutely essential to precisely follow the operation steps as described in the vehicle diagnosis system
The software update in the HERMES control unit (N112/9) can take several hours.
IMPORTANT Do not yet remove vehicle diagnosis system.
AR54.21-S-0014E
INSPECT Check
15 Perform function test of HERMES control unit (N112/9) using XENTRY Diagnosis. IMPORTANT To do this, select the following menu items:
Quick test view →
N112/9 'Telematics services' (HERMES) communication module (code: JH3) →
Actuations →
Self-test
IMPORTANT The operation steps in XENTRY Diagnosis must be followed precisely at all times.

16 Perform function test of emergency call system. IMPORTANT To do so, switch on ignition without touching brake pedal and check whether "SOS NOT READY" warning message in instrument cluster disappears automatically
IMPORTANT Model 447.6/7 with code E3C (Audio 30) or code EA4 (Audio 40) or code EN6 (Audio 10) or code EN7 (Audio 15)
On these vehicles, switch on the radio and check if "SOS NOT READY" appears in the central display of the radio, and then check if shortly after this "SOS NOT READY" automatically disappears from the central display.

  Remove
17 Remove vehicle diagnosis system.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-S-2000-04E
18 Remove the 12 V charger from vehicle.
REFER TO TESTING & REPAIR     AR54.10-S-1127E
PARTS ORDERING NOTE

Part no. Designation Quantity
A 238 900 11 06 HERMES control unit 1
- Additional replacement part scopes, small parts and consumable materials required for carrying out this service measure must be replaced in accordance with the information in the repair documents referenced in this document. These must be determined according to the vehicle identification number (FIN) via the "XENTRY Parts Information" system and, whilst not listed in the parts ordering note, they are included in the costing. n.B.
